Modeling Study

Cervical Cancer: Screening

August 21, 2018

Recommendations made by the USPSTF are independent of the U.S. government. They should not be construed as an official position of the Agency for Healthcare Research and Quality or the U.S. Department of Health and Human Services.

By Jane J. Kim, PhD; Emily A. Burger, PhD; Catherine Regan, BA; and Stephen Sy, MS

The information in this article is intended to help clinicians, employers, policymakers, and others make informed decisions about the provision of health care services. This article is intended as a reference and not as a substitute for clinical judgment.

This article may be used, in whole or in part, as the basis for the development of clinical practice guidelines and other quality enhancement tools, or as a basis for reimbursement and coverage policies. AHRQ or U.S. Department of Health and Human Services endorsement of such derivative products may not be stated or implied.

This article was published in JAMA on August 21, 2018.

Return to Table of Contents

Importance: Evidence on the relative benefits and harms of primary high-risk human papillomavirus (hrHPV) testing is needed to inform guidelines.

Objective: To inform the US Preventive Services Task Force by modeling the benefits and harms of various cervical cancer screening strategies.

Design, Setting, and Participants: Microsimulation model of a hypothetical cohort of women initiating screening at age 21 years.

Exposures: Screening with cytology, hrHPV testing, and cytology and hrHPV cotesting, varying age to switch from cytology to hrHPV testing or cotesting (25, 27, 30 years), rescreening interval (3, 5 years), and triage options for hrHPV-positive results (16/18 genotype, cytology testing). Current guidelines-based screening strategies comprised cytology alone every 3 years starting at age 21 years, with or without a switch to cytology and hrHPV cotesting every 5 years from ages 30 to 65 years. Complete adherence for all 19 strategies was assumed.

Main Outcomes and Measures: Lifetime number of tests, colposcopies, disease detection, false-positive results, cancer cases and deaths, life-years, and efficiency ratios expressing the trade-off of harms (ie, colposcopies, tests) vs benefits (life-years gained, cancer cases averted). Efficient strategies were those that yielded more benefit and less harm than another strategy or a lower harm to benefit ratio than a strategy with less harms.

Results: Compared with no screening, all modeled cervical cancer screening strategies were estimated to result in substantial reductions in cancer cases and deaths and gains in life-years. The effectiveness of screening across the different strategies was estimated to be similar, with primary hrHPV-based and alternative cotesting strategies having slightly higher effectiveness and greater harms than current guidelines-based cytology testing. For example, cervical cancer deaths associated with the guidelines-based strategies ranged from 0.30 to 0.76 deaths per 1000 women, whereas new strategies involving primary hrHPV testing or cotesting were associated with fewer cervical cancer deaths, ranging from 0.23 to 0.29 deaths per 1000 women. In all analyses, primary hrHPV testing strategies occurring at 5-year intervals were efficient. For example, 5-year primary hrHPV testing (cytology triage) based on switching from cytology to hrHPV screening at ages 30 years, 27 years, and 25 years had ratios per life-year gained of 73, 143, and 195 colposcopies, respectively. In contrast, strategies involving 3-year hrHPV testing had much higher ratios, ranging from 2188 to 3822 colposcopies per life-year gained. In most analyses, strategies involving cotesting were not efficient.

Conclusions and Relevance: In this microsimulation modeling study, it was estimated that primary hrHPV screening may represent a reasonable balance of harms and benefits when performed every 5 years. Switching from cytology to hrHPV testing at age 30 years yielded the most efficient harm to benefit ratio when using colposcopy as a proxy for harms.

Return to Table of Contents

In 2012, cervical cancer screening guidelines were harmonized across several major guidelines-making organizations, including the US Preventive Services Task Force (USPSTF),1-3 recommending routine cytology screening every 3 years starting at age 21 years, with an option to switch to cytology and high-risk human papillomavirus (hrHPV) “cotesting” every 5 years starting at age 30 years (A recommendation). Screening is recommended to end at age 65 years, provided a history of regular screening without abnormalities in the past 10 to 20 years.1-3 Since 2012, new evidence on primary hrHPV testing has emerged, contributing to the US Food and Drug Administration approval of the first stand-alone hrHPV test for primary screening in women 25 years and older. Interim clinical guidance on the use of primary hrHPV testing has been issued from several professional organizations.4

Although empirical studies such as randomized clinical trials provide high-quality evidence on the effectiveness of screening, outcomes are usually based on intermediate end points (eg, precancer detection or colposcopy rates) after limited rounds of screening. Mathematical disease simulation models can complement such evidence by extrapolating data beyond the trial period to project long-term outcomes of screening (eg, life expectancy) over multiple rounds of screening. Models can also explore alternative scenarios that have not been examined in empirical studies. This decision analysis using a cervical cancer disease simulation model accompanied an evidence report for the USPSTF to update the evidence and address gaps in the expected benefits and harms of cervical cancer screening strategies in primary care.5

Return to Table of Contents

The full decision analysis technical report is available at https://www.uspreventiveservicestaskforce.org/uspstf/recommendation/cervical-cancer-screening. The full report contains additional model calibration and validation results, as well as results from additional scenario and sensitivity analyses.

Model Description

The disease microsimulation model has a natural history component and a screening component that are used to project the life histories of simulated women under different screening strategies.6,7 In the natural history model, each simulated woman faces monthly transitions between health states that describe underlying disease status, including HPV infection, precancer (ie, cervical intraepithelial neoplasia [CIN] grades 2 and 3), and invasive cancer (ie, local, regional, distant stages) (Figure 1). Health states are further stratified by oncogenic HPV types 16, 18, 31, 33, 45, 52, and 58, each considered separately; pooled other high-risk types; and pooled low-risk types. Each month, women have risks of hysterectomy and death from all causes,8,9 as well as death from cervical cancer based on survival data from the Surveillance, Epidemiology, and End Results (SEER) program.10 Transition probabilities can vary by age, HPV type, duration of infection or lesion status, and a woman’s history of prior HPV infection and CIN treatment. Uncertain parameters, such as HPV incidence, CIN progression and regression, and HPV natural immunity, were calibrated to data on HPV prevalence and type distribution among women with and without cervical disease.11-13 The model focuses on squamous cell carcinoma, the most common histologic subtype of cervical cancer.

Screening is used to detect the presence of high-grade precancers, which can be treated before progressing to cancer, or for the earlier detection of invasive cancer. Screening assumptions in the model can vary by screening start and stop ages, frequency, coverage, follow-up (ie, triage) testing, and adherence to recommended follow-up. Tests for primary screening and triage include cytology, hrHPV DNA testing, and cytology and hrHPV cotesting, with varying test characteristics (Table 1).14-18 Diagnostic colposcopy and biopsy were assumed to be 100% accurate in confirmation of histologic status, and the effectiveness of precancer treatment (eg, loop electrosurgical excisional procedure) was assumed to be 100%, but both assumptions were varied in sensitivity analysis. Details on the selection of input data and assumptions are available in the full report.

The model was validated against data from SEER cancer registries (years 2000-2013), under assumptions of current screening practice patterns.19-21 Additional model validation exercises included comparing model projections against reported outcomes from the HPV for Cervical Cancer Screening (HPV FOCAL) trial, a randomized trial evaluating stand-alone hrHPV testing for primary screening.22

Screening Strategies

The analysis focused on the comparative effectiveness and harms of primary hrHPV testing, compared with currently recommended screening strategies. Table 2 summarizes the 19 main strategies evaluated. Guideline-based screening strategies comprised cytology alone every 3 years from ages 21 to 65 years (strategy 1) and cytology alone every 3 years from ages 21 to 29 years, with a switch to cytology and hrHPV cotesting every 5 years from ages 30 to 65 years (strategy 2).1-3 Follow-up of women with equivocal or abnormal test results was assumed to follow established guidelines.2,23 For cotesting, hrHPV-positive/cytology-negative women underwent repeat cotesting at 12 months, with referral to colposcopy for any positive result.

The primary HPV testing strategies (strategies 3-14) were varied by (1) age to switch from cytology to hrHPV screening, (2) rescreening interval after an hrHPV-negative result, and (3) triage options for hrHPV-positive results. Age to switch to hrHPV screening was evaluated at ages 25, 27, and 30 years, following cytology-only screening starting at age 21 years. The rescreening interval for primary hrHPV testing was evaluated every 3 years and every 5 years, consistent with current guidelines for cytology-only testing and cotesting. Two triage strategies for hrHPV-positive screening results were examined: (1) assuming HPV-16/18 genotype information is available, HPV-16/18–positive women are referred to colposcopy, whereas women positive for other high-risk HPV types receive cytology triage (those with a cytology result of atypical squamous cells of undetermined significance (ASCUS) or worse are referred to colposcopy; those with a cytology-negative result receive a follow-up test in 12 months); (2) all women with hrHPV receive cytology triage. Additional cotesting strategies (strategies 15-19) were also included, varying the age to switch and rescreening interval.

In the base-case analysis, the age to stop screening was 65 years, assuming no recent history of abnormal results, consistent with current guidelines; sensitivity analysis was used to evaluate the effect of extending the age threshold at which to terminate screening to 70 and 75 years. The analysis assumed full adherence to screening initiation, rescreening interval, and follow-up for both diagnostic and precancer treatment referrals. Furthermore, the base-case analysis focused on women who did not receive HPV vaccination.

Screening Outcomes

The model was used to generate a number of outcomes associated with each screening strategy, reflecting both health benefits and harms over the lifetime of screening starting at age 21 years. Harms included total number of cytology and hrHPV tests (including screening, triage, and surveillance), colposcopies, and false-positive screening results (defined as total number of colposcopies without underlying CIN 2, CIN 3, or cancer); benefits included CIN 2 and CIN 3 detected, CIN 3 or worse (CIN 3+) detected (including CIN 3 and cervical cancers detected through screening), cervical cancer cases and deaths averted, and life-years gained. These measures were calculated as the cumulative number of events or time spent in the different health states, which were then modified by by the interventions, over the selected time horizon (ie, lifetime).

Analysis

The relative efficiency of each screening strategy was evaluated to examine the trade-off of harms vs benefits for the general population of women being screened and was expressed as the incremental number of colposcopies per life-year gained. This efficiency ratio was defined as the additional number of colposcopies divided by the additional life-years of a specific strategy compared with the strategy with the next fewer colposcopies. Strategies with more harms (colposcopies) and less benefits (life-years) than an alternative strategy, or with a higher harm to benefit ratio than a strategy with more harms, were considered “inefficient” and eliminated from the calculation; all other strategies were considered “efficient.” Because there is no consensus on the appropriate metric to assess efficiency, results are also presented in terms of the incremental number of total screening tests per life-year gained and the incremental number of colposcopies per cervical cancer case averted.

Sensitivity Analysis

The effects of uncertainty and alternative assumptions on the results were also assessed. Data uncertainty included screening test characteristics, colposcopy and biopsy performance, and effectiveness of precancer treatment. Alternative screening scenarios included variations in follow-up of hrHPV-positive women, including cytology triage with a colposcopy referral threshold of low-grade squamous intraepithelial lesion (base-case analyses assumed ASCUS), varying intervals for follow-up testing from 6 months to 24 months (base-case analyses assumed 12 months), and immediate colposcopy for all hrHPV-positive women. To reflect a low-risk population, screening of HPV-vaccinated women was evaluated, assuming that 100% of women were vaccinated with the 3-dose HPV-16/18 vaccine in preadolescence and that vaccination conferred 100% protection against HPV-16 and HPV-18 infections over the lifetime.

The model was programmed in C++, and model outputs were analyzed in R version 1.0.136 (R Project for Statistical Computing).

Return to Table of Contents

In the absence of screening, estimated lifetime cervical cancer incidence was 1.9% and lifetime risk of cervical cancer mortality was 0.83%, resulting in a life expectancy of 63.9 years (Table 3) for 20-year-old women. Compared with no screening, all modeled cervical cancer screening strategies were estimated to result in substantial reductions in cervical cancer cases and deaths and gains in life-years. However, the effectiveness of screening across the different strategies was estimated to be similar, with primary hrHPV based and alternative cotesting strategies having slightly higher effectiveness in terms of life-years gained and cancer cases and deaths averted than current guidelines-based cytology testing. For example, cervical cancer deaths associated with the guidelines based strategies (strategies 1 and 2) ranged from 0.30 to 0.76 deaths per 1000 women, whereas the new strategies involving primary hrHPV testing or cotesting varying switch age, interval, and triage option (strategies 3-19) were associated with fewer cervical cancer deaths, ranging from 0.23 to 0.29 deaths per 1000 women (an improvement of 0.01 to 0.53 lives saved per 1000 women screened).

In terms of harms, more frequent rescreening interval (ie, 3-year vs 5-year) and cotesting strategies were generally associated with a greater number of lifetime total tests, whereas the age to switch from cytology to hrHPV testing or cotesting did not have much effect on the estimates. Using cytology triage for hrHPV-positive women was associated with slightly increased lifetime total testing (1%-2%), compared with 16/18 genotype triage. With cotesting, the number of lifetime total tests were 60% to 82% greater than with the analogous strategy involving hrHPV testing alone.

Cytology testing alone every 3 years from age 21 to age 65 years was associated with the lowest number of lifetime colposcopies (ie, 645 per 1000 women) but also the lowest number of CIN2 or CIN3 and CIN 3+ cases detected. All other strategies were associated with a higher number of colposcopies, especially for cotesting (strategies 2, 15-19), followed by primary hrHPV testing with 16/18 genotype triage (strategies 3-8). Primary hrHPV testing with 16/18 genotype triage was associated with 12% to 14% more colposcopies than hrHPV testing with cytology triage. Consistent with the trend of colposcopies, the number of false-positive results increased when switching from 3-year cytology testing to hrHPV testing or cotesting.

Relative Efficiency Analysis

Three different metrics were calculated to reflect different ways of capturing the harm-benefit trade-off (Figure 2).

Colposcopies per Life-Year Gained

The strategy with the lowest number of colposcopies per life-year gained was the current guidelines-based strategy of cytology testing alone every 3 years from ages 21 to 65 years (strategy 1), with 3 colposcopies per life-year gained compared with no screening (Figure 2A). By comparison, primary hrHPV and cotesting strategies were associated with both increased life-years and more colposcopies. Primary hrHPV testing with cytology triage every 5 years at a switch age of 30 years (strategy 14) was associated with 73 colposcopies per life-year gained; at a switch age of 27 years (strategy 13), with 143 colposcopies per life-year gained; and at a switch age of 25 years (strategy 12), with 195 colposcopies per life-year gained. Increasing the frequency of screening to 3-year primary hrHPV testing and switching at age 25 years required a much greater number of colposcopies per life-year gained, ranging from 2188 (cytology triage, strategy 9) to 3822 (16/18 genotype triage, strategy 3). All other strategies, including cotesting (strategies 2, 15-19), were not efficient, given the similar gains in life-years but much higher numbers of colposcopy referrals.

Tests per Life-Year Gained

When the analysis was expressed in terms of tests (ie, cytology and hrHPV tests) per life-year gained, the only efficient strategies were primary hrHPV testing with 16/18 genotype triage at a switch age of 25 years (Figure 2B); the efficiency ratio was 43 tests per life-year gained for 5-year screening (strategy 6) and increased substantially to 22,335 tests per life-year gained for 3-year screening (strategy 3). Both cytology-only and cotesting strategies (strategies 1-2, 15-19) were either equally or less effective but were associated with higher numbers of tests than primary hrHPV testing strategies and were therefore not efficient.

Colposcopies per Cervical Cancer Case Averted

Efficient strategies were consistent with those identified in the analysis of colposcopies per life-year gained. Cytology-only screening every 3 years (strategy 1) had the lowest ratio of 39 colposcopies per cervical cancer case averted (Figure 2C). Switching from cytology to 5-year primary hrHPV testing at age 30 years (strategy 14) was associated with a ratio of 640 colposcopies per cancer case averted; earlier switch ages required a greater number of colposcopies per cancer case averted, ranging from 1161 for switch age 27 years (strategy 13) and 1735 for switch age 25 years (strategy 12). High-risk HPV testing every 3 years at a switch age of 25 years increased the ratio to 7018 colposcopies per cancer case averted (cytology triage, strategy 9) and 23,974 colposcopies per cancer case averted (16/18 genotype triage, strategy 3). As with colposcopies per life-year gained, cotesting strategies (strategies 2, 15-19) were not efficient, given the much higher rate of colposcopy referrals.

Sensitivity Analysis

When the age to end screening was extended to 70 or 75 years, the efficiency results were similar to the base-case analyses (ie, age to end screening at 65 years) for all 3 efficiency outcomes. The corresponding ratios increased as the end age increased, indicating that when screening is continued to later ages, it becomes less efficient.

Sensitivity analyses assessed the effect of test performance characteristics on the main results. When test sensitivity for cytology was increased to the upper-bound value (with a corresponding decrease in specificity), the efficient strategies remained the same for all 3 efficiency metrics, but the ratios generally increased (ie, became less efficient), given the increase in downstream colposcopies and tests. In contrast, when specificity for cytology was increased (with a decrease in sensitivity), the effectiveness of all strategies decreased—especially for screening with cytology alone—but given the corresponding decrease in colposcopies, the ratios using this measure decreased (became more efficient) for all strategies.

The lower-bound (worst-case) relative sensitivity of hrHPV testing was explored, affecting both hrHPV testing alone and cotesting. Despite a decrease in the effectiveness of the primary hrHPV testing strategies, these strategies were still associated with greater benefits compared with the current guidelines-based strategies. Since the decrease in effectiveness was also accompanied by a decrease in colposcopies, the ratios among efficient strategies improved and more strategies involving 3-year screening with hrHPV testing alone (strategies 3, 9, 10) became efficient, likely because of an offset from the lower sensitivity value.

In analyses that introduced error in the performance of colposcopy and biopsy in classifying a woman’s true histologic status, or that assumed that the effectiveness of precancer treatment (eg, loop electrosurgical excisional procedure) was decreased to 82%, the base-case results of the efficiency analyses remained stable under both sensitivity analyses, with slight decreases in the ratios attributable to the relatively greater reductions in harms (ie, colposcopies and tests) than benefits (ie, life-years and cases averted).

Alternative follow-up algorithms based on protocols from empirical studies were examined, including for women who receive cytology triage, a more stringent cutoff of low-grade squamous intraepithelial lesion as the threshold for colposcopy referral (ie, ASCUS in the base case), as well as varying the time to repeat testing after a normal cytology triage result to 6 months or 24 months (ie, 12 months in the base case). Each of these sensitivity analyses resulted in similar efficient strategies as in the base-case analyses, and the ratios for the strategies across the different efficiency outcomes changed only marginally.

A third alternative triage option was evaluated in which all hrHPV-positive women were referred directly to colposcopy. The number of colposcopies and false-positive results was much greater, with only a small increase in effectiveness. For ratios that used colposcopies as a measure of harm, all strategies that referred hrHPV-positive women directly to colposcopy without further testing were not efficient.

For women assumed to be completely protected from HPV-16/18 infections over their lifetime because of vaccination, the same strategies were identified as efficient as in the base case; however, the harm to benefit ratios for these strategies became less favorable, given the considerably lower cervical cancer risk in HPV-vaccinated women.

Return to Table of Contents

In this analysis, consistent with short-term evidence from clinical studies, the model projected that strategies involving primary hrHPV testing or cotesting were associated with greater health benefits compared with current guidelines-based cytology testing alone but come at a harm of more tests, colposcopies, and false-positive results. In all analyses, across 3 different efficiency measures, primary hrHPV testing strategies occurring at 5-year intervals were efficient, with the harm to benefit ratios decreasing (ie, becoming more efficient) as the switch age extended from 25 to 30 years. By comparison, strategies involving 3-year hrHPV testing generally had much higher ratios. The efficiency of triage options for hrHPV-positive women depended on which outcome was used as a proxy for harm: cytology triage was more efficient than 16/18 genotype triage for the 2 efficiency metrics that used colposcopy as the proxy for harm (per life-year gained and per cervical cancer case averted); however, 16/18 genotype testing was the preferred triage option when using screening tests as the proxy for harm (per life-year gained).

Cytology alone every 3 years from ages 21 to 65 years had the lowest benefit in terms of life-years gained and cervical cancer cases averted, as well as the lowest number of colposcopies. When number of colposcopies was used as the measure of harm, cytology testing alone every 3 years was associated with very low (ie, efficient) ratios; however, when using total tests as the measure of harm, cytology testing was inefficient. Cotesting strategies, including one currently recommended in the United States (consisting of cytology testing every 3 years starting at age 21 years, switching at age 30 years to cotesting every 5 years [strategy 2]), were predominantly inefficient compared with strategies involving hrHPV testing alone across all analyses.

This analysis, used to inform the USPSTF recommendations for cervical cancer screening, extends the 2012 decision analysis, which primarily evaluated cytology-based strategies.24 The current analysis focused specifically on hrHPV testing for primary screening and included variations in age to switch from cytology-only screening to hrHPV testing, the rescreening interval, and triage options for hrHPV-positive women. For strategies that overlapped in both reports, the results from the current analysis were similar to the findings from the previous analysis.

When extending age to end screening from 65 to 70 or 75 years (assuming no recent abnormal results), the model projected slight increases in each of the ratios attributable to decreased efficiency of screening in older ages. However, given the uncertainties regarding the natural history of HPV infection and screening effectiveness in older women—which were not extensively explored in the current analysis—the findings of screening end age should be viewed as exploratory and interpreted with caution.

When multiple strategies are identified as efficient, selecting the optimal strategy depends on a threshold ratio that would be considered a reasonable balance of harms and benefits. The desired thresholds for each of the 3 efficiency measures is not clear when using intermediate metrics such as colposcopies or tests as a proxy for harm, as it is difficult to directly compare against other (noncervical cancer) health interventions.

Limitations

This study has several limitations. First, the analysis was based on assumptions of perfect adherence to screening intervals and follow-up of screen-positive women; however, it is well documented that screening practice is not perfect and is quite variable across the United States. How loss to follow-up might differ across testing modalities, age, and interval is uncertain but could affect the overall effectiveness and relative efficiency of the screening strategies.

Second, although a number of unique strategies were analyzed, there may be other strategies that could lead to a more attractive balance of harms and benefits. For example, the rescreening interval was restricted to not extend beyond every 5 years, but extending intervals (eg, to 7 or 10 years) may be more efficient without compromising effectiveness.

Third, the analyses did not explore different assumptions regarding the natural history of HPV infection in older women, nor did they examine other strategies or criteria to determine when to stop screening. There is much uncertainty regarding the prevalence and clinical importance of a newly acquired HPV infection vs reactivation of a previously acquired infection in older ages, which may affect the optimal age at which to stop screening. Two studies have indicated that the incidence and mortality rates from cervical cancer are underestimated by the SEER program, given high rates of hysterectomies in US women, and suggest that the current recommendation for terminating screening may not be optimal.25,26 The findings from the microsimulation model, which do correct for hysterectomy rates by age in the population, indicate efficiency and greater effectiveness by extending the screening end age to 70 or 75 years; however, other screening exit criteria and strategies should be further explored in analyses under various assumptions of disease risk and screening effect at older ages.

Fourth, issues regarding HPV-negative cancers and the implications for the relative effectiveness of hrHPV testing alone vs cytology alone or cotesting were not fully addressed.27 The sensitivity analysis in which hrHPV relative test sensitivity (compared with cytology) was decreased to a lower bound estimate mimics a scenario of greater missed disease owing to hrHPV negativity; this scenario was the only one in which strategies involving 3-yearly hrHPV screening became more efficient, with ratios comparable to 5-yearly hrHPV screening in the base-case analyses.

Fifth, the results from the model represent average outcomes across the whole population and are intended to inform guidelines at the population level, not at an individual level. In assessing screening in a low-risk population, only 1 very specific subset of low-risk women was represented—those who receive protection against HPV-16/18 infection and disease from vaccination. Although other segments of the population are at low risk, this question will become increasingly more pertinent as vaccinated women enter screening age.

Return to Table of Contents

In this microsimulation modeling study, it was estimated that primary hrHPV screening may represent a reasonable balance of harms and benefits when performed every 5 years. Switching from cytology to hrHPV testing at age 30 years yielded the most efficient harm to benefit ratio when using colposcopy as a proxy for harms.

Return to Table of Contents

Source: This article was first published in JAMA on August 21, 2018 (JAMA. 2018;320(7):706-714).

Conflict of Interest Disclosures: All authors have completed and submitted the ICMJE Form for Disclosure of Potential Conflicts of Interest and none were reported.

Funding/Support: This research was funded under contract HHSA-290-2012-00015-I, Task Order 6, from the Agency for Healthcare Research and Quality (AHRQ), US Department of Health and Human Services, under a contract to support the USPSTF. Dr Kim, Dr Burger, Ms Regan, and Mr Sy were also supported in part by National Cancer Institute grant U01CA199334

Role of the Funder/Sponsor: Investigators worked with USPSTF members and AHRQ staff to develop the scope and key questions for this analysis. AHRQ staff provided project oversight; reviewed the report to ensure that the analysis met methodological standards, and distributed the draft for peer review. Otherwise, AHRQ had no role in the conduct of the study; collection, management, analysis, and interpretation of the data; and preparation, review, or approval of the manuscript findings. The opinions expressed in this document are those of the authors and do not reflect the official position of AHRQ or the US Department of Health and Human Service

Additional Information: A draft version of this evidence report underwent external peer review from 3 content experts (Diana Petitti, MD, MPH, University of Arizona College of Medicine; Gillian Sanders Schmidler, PhD, Duke University; Alan Waxman, MD, MPH, University of New Mexico). Comments from reviewers were presented to the USPSTF during its deliberation of the evidence and were considered in preparing the final report.

Return to Table of Contents

1. Moyer VA; U.S. Preventive Services Task Force. Screening for cervical cancer: U.S. Preventive Services Task Force recommendation statement [published correction appears in Ann Intern Med. 2013;158(11):852]. Ann Intern Med. 2012;156(12):880-891.
2. Saslow D, Solomon D, Lawson HW, et al; ACS-ASCCP-ASCP Cervical Cancer Guideline Committee. American Cancer Society, American Society for Colposcopy and Cervical Pathology, and American Society for Clinical Pathology screening guidelines for the prevention and early detection of cervical cancer. CA Cancer J Clin. 2012;62(3):147-172.
3. Committee on Practice Bulletins—Gynecology. ACOG Practice Bulletin Number 131: screening for cervical cancer. Obstet Gynecol. 2012;120(5):1222-1238.
4. Huh WK, Ault KA, Chelmow D, et al. Use of primary high-risk human papillomavirus testing for cervical cancer screening: interim clinical guidance. Gynecol Oncol. 2015;136(2):178-182.
5. Melnikow J, Henderson JT, Burda BU, et al. Screening for Cervical Cancer With High-Risk Human Papillomavirus Testing: A Systematic Evidence Review for the U.S. Preventive Services Task Force: Evidence Synthesis No. 158. Rockville, MD: Agency for Healthcare Research and Quality; 2018. AHRQ publication 17-05231-EF-1.
6. Campos NG, Burger EA, Sy S, et al. An updated natural history model of cervical cancer: derivation of model parameters. Am J Epidemiol. 2014;180(5):545-555.
7. Kim JJ, Campos NG, Sy S, et al; New Mexico HPV Pap Registry Steering Committee. Inefficiencies and high-value improvements in U.S. cervical cancer screening practice: a cost-effectiveness analysis. Ann Intern Med. 2015;163(8):589-597.
8. National Center for Health Statistics (NCHS). 2010 National Hospital Discharge Survey (NHDS) public use micro-data file and documentation. NCHS website. https://www.cdc.gov/nchs/nhds/nhds_questionnaires.htm. 2012. Accessed January 31, 2017.
9. University of California Berkeley. Berkeley Mortality Database. http://bmd.mortality.org/. Accessed April 20, 2020.
10. National Cancer Institute. Surveillance, Epidemiology, End Results (SEER) Cancer Statistics Review, 1975-2013. https://seer.cancer.gov/archive/csr/1975_2013/. September 12, 2016. Accessed January 31, 2017.
11. Wheeler CM, Hunt WC, Cuzick J, et al; New Mexico HPV Pap Registry Steering Committee. A population-based study of human papillomavirus genotype prevalence in the United States: baseline measures prior to mass human papillomavirus vaccination. Int J Cancer. 2013;132(1):198-207.
12. Joste NE, Ronnett BM, Hunt WC, et al; New Mexico HPV Pap Registry Steering Committee. Human papillomavirus genotype–specific prevalence across the continuum of cervical neoplasia and cancer. Cancer Epidemiol Biomarkers Prev. 2015;24(1):230-240.
13. Saraiya M, Unger ER, Thompson TD, et al; HPV Typing of Cancers Workgroup. US assessment of HPV types in cancers: implications for current and 9-valent HPV vaccines. J Natl Cancer Inst. 2015;107(6):djv086.
14. Koliopoulos G, Arbyn M, Martin-Hirsch P, Kyrgiou M, Prendiville W, Paraskevaidis E. Diagnostic accuracy of human papillomavirus testing in primary cervical screening: a systematic review and meta-analysis of non-randomized studies. Gynecol Oncol. 2007;104(1):232-246.
15. Cox JT, Castle PE, Behrens CM, Sharma A, Wright TC Jr, Cuzick J; Athena HPV Study Group. Comparison of cervical cancer screening strategies incorporating different combinations of cytology, HPV testing, and genotyping for HPV 16/18: results from the ATHENA HPV study. Am J Obstet Gynecol. 2013;208(3):184.e1-11.
16. Arbyn M, Ronco G, Anttila A, et al. Evidence regarding human papillomavirus testing in secondary prevention of cervical cancer. Vaccine. 2012;30(suppl 5):F88-F99.
17. Ronco G, Giorgi-Rossi P, Carozzi F, et al; New Technologies for Cervical Cancer Screening Working Group. Human papillomavirus testing and liquid-based cytology in primary screening of women younger than 35 years: results at recruitment for a randomised controlled trial. Lancet Oncol. 2006;7(7):547-555.
18. Ronco G, Segnan N, Giorgi-Rossi P, et al; New Technologies for Cervical Cancer Working Group. Human papillomavirus testing and liquid-based cytology: results at recruitment from the New Technologies for Cervical Cancer randomized controlled trial. J Natl Cancer Inst. 2006;98(11):765-774.
19. Cuzick J, Myers O, Hunt WC, et al; New Mexico HPV Pap Registry Steering Committee. A population-based evaluation of cervical screening in the United States: 2008-2011. Cancer Epidemiol Biomarkers Prev. 2014;23(5):765-773.
20. Cuzick J, Myers O, Hunt WC, et al; New Mexico HPV Pap Registry Steering Committee. Human papillomavirus testing 2007-2012: co-testing and triage utilization and impact on subsequent clinical management. Int J Cancer. 2015;136(12):2854-2863.
21. Kinney W, Hunt WC, Dinkelspiel H, Robertson M, Cuzick J, Wheeler CM; New Mexico HPV Pap Registry Steering Committee. Cervical excisional treatment of young women: a population-based study. Gynecol Oncol. 2014;132(3):628-635.
22. Ogilvie GS, Krajden M, van Niekerk D, et al. HPV for cervical cancer screening (HPV FOCAL): complete round 1 results of a randomized trial comparing HPV-based primary screening to liquid-based cytology for cervical cancer. Int J Cancer. 2017;140(2):440-448.
23. Massad LS, Einstein MH, Huh WK, et al; 2012 ASCCP Consensus Guidelines Conference. 2012 updated consensus guidelines for the management of abnormal cervical cancer screening tests and cancer precursors. J Low Genit Tract Dis. 2013;17(5)(suppl 1):S1-S27.
24. Kulasingam SL, Havrilesky LJ, Ghebre R, Myers ER. Screening for cervical cancer: a modeling study for the US Preventive Services Task Force. J Low Genit Tract Dis. 2013;17(2):193-202.
25. Beavis AL, Gravitt PE, Rositch AF. Hysterectomy-corrected cervical cancer mortality rates reveal a larger racial disparity in the United States. Cancer. 2017;123(6):1044-1050.
26. Rositch AF, Nowak RG, Gravitt PE. Increased age and race-specific incidence of cervical cancer after correction for hysterectomy prevalence in the United States from 2000 to 2009. Cancer. 2014;120(13):2032-2038.
27. Blatt AJ, Kennedy R, Luff RD, Austin RM, Rabin DS. Comparison of cervical cancer screening results among 256,648 women in multiple clinical practices. Cancer Cytopathol. 2015;123(5):282-288.

Return to Table of Contents

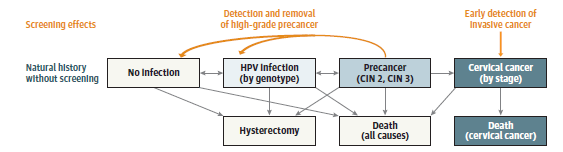

The main health states of the natural history model comprise no infection, human papillomavirus (HPV) infection (by genotype), precancer (cervical intraepithelial neoplasia [CIN] grades 2 and 3), invasive cancer (by stage), hysterectomy, and death (from all causes or from cervical cancer). Movement between these health states occur as monthly transitions. The model focuses on squamous cell carcinoma, the most common histologic subtype of cervical cancer. Screening is used to detect the presence of CIN 2 or CIN 3, which can be treated and removed before it progresses to cancer, as well as for early detection of invasive cancer.

The main health states of the natural history model comprise no infection, human papillomavirus (HPV) infection (by genotype), precancer (cervical intraepithelial neoplasia [CIN] grades 2 and 3), invasive cancer (by stage), hysterectomy, and death (from all causes or from cervical cancer). Movement between these health states occur as monthly transitions. The model focuses on squamous cell carcinoma, the most common histologic subtype of  cervical cancer. Screening is used to detect the presence of CIN 2 or CIN 3, which can be treated and removed before it progresses to cancer, as well as for early detection of invasive cancer.

Return to Table of Contents

Test Characteristica Screening Test Sensitivity Analysis
Base-Case Value Source Worst-Case Value Base-Case Value Source
Cytologyb
   Sensitivity 0.727 Koliopoulos et al, 200714 0.514 0.815 Koliopoulos et al, 200714
Cox et al, 201315
   Specificity 0.919 0.880 0.936
hrHPVc
   Relative sensitivity 1.24 Cox et al, 201315 1.15 1.37 Cox et al, 201315
Arbyn et al, 201216
Ronco et al, 200617
Ronco et al, 200618
   Relative specificity 0.97 0.96 0.98
Cotestc
   Relative sensitivity 1.31 Cox et al, 201315 1.20 1.42 Cox et al, 201315
Arbyn et al, 201216
Ronco et al, 200617
Ronco et al, 200618
   Relative specificity 0.93 0.93 0.94

Abbreviation: hrHPV, high-risk human papillomavirus.
a Sensitivity (specificity) for all tests defined as probability to detect presence (absence) of cervical intraepithelial neoplasia, grade 2 or worse.
b For cytology testing, positivity threshold is atypical squamous cells of undetermined significance.
c For hrHPV testing and cotesting, given the wide variation in absolute test characteristics across studies attributable to differences in protocols and populations, we elected to use relative sensitivity and specificity values, compared with cytology testing (positivity threshold of atypical squamous cells of undetermined significance). For example, the base-case test sensitivity value for primary hrHPV testing was 0.901 (0.727 × 1.24) and for cotesting was 0.952 (0.727 × 1.31).

Return to Table of Contents

Strategy Screen 1 Screen 2 Triage Strategies
No. Nameb Test Interval, y Start Age, y Test Interval, y Start Age, y
1 CYTO-3Y, 21c Cytology 3 21       HPV for ASCUS
2 CYTO-3Y, 21/COTEST-5Y, 30c Cytology 3 21 Cotest 5 30 Repeat cotest, 12 mo
3 CYTO-4Y, 21/HPV-3Y (16/18), 25 Cytology 4 21 HPV 3 25 HPV-16/18 genotype
4 CYTO-3Y, 21/HPV-3Y (16/18), 27 Cytology 3 21 HPV 3 27
5 CYTO-3Y, 21/HPV-3Y (16/18), 30 Cytology 3 21 HPV 3 30
6 CYTO-4Y, 21/HPV-5Y (16/18), 25 Cytology 4 21 HPV 5 25
7 CYTO-3Y, 21/HPV-5Y (16/18), 27 Cytology 3 21 HPV 5 27
8 CYTO-3Y, 21/HPV-5Y (16/18), 30 Cytology 3 21 HPV 5 30
9 CYTO-4Y, 21/HPV-3Y (cyto), 25 Cytology 4 21 HPV 3 25 Cytology triage
10 CYTO-3Y, 21/HPV-3Y (cyto), 27 Cytology 3 21 HPV 3 27
11 CYTO-3Y, 21/HPV-3Y (cyto), 30 Cytology 3 21 HPV 3 30
12 CYTO-4Y, 21/HPV-5Y (cyto), 25 Cytology 4 21 HPV 5 25
13 CYTO-3Y, 21/HPV-5Y (cyto), 27 Cytology 3 21 HPV 5 27
14 CYTO-3Y, 21/HPV-5Y (cyto), 30 Cytology 3 21 HPV 5 30
15 CYTO-4Y, 21/COTEST-3Y, 25 Cytology 4 21 Cotest 3 25 Repeat cotest, 12 mo
16 CYTO-3Y, 21/COTEST-3Y, 27 Cytology 3 21 Cotest 3 27
17 CYTO-3Y, 21/COTEST-3Y, 30 Cytology 3 21 Cotest 3 30
18 CYTO-4Y, 21/COTEST-5Y, 25 Cytology 4 21 Cotest 5 25
19 CYTO-3Y, 21/COTEST-5Y, 27 Cytology 3 21 Cotest 5 27

Abbreviations: ASCUS, atypical squamous cells of undetermined significance; HPV, human papillomavirus.
a Cotest strategies involve cytology and high-risk HPV (hrHPV) testing. Follow-up of women with abnormal screening results was assumed to follow clinical guidelines2,23 and includes (1) for cytology testing, reflex hrHPV testing for women with ASCUS and referral to colposcopy for women with more severe abnormal results; (2) for cotesting, repeat cotesting in 12 months for women with cytology-negative, hrHPV-positive results; and (3) for hrHPV testing, 2 triage options—(A) “HPV (16/18)” strategies involving referral to colposcopy for women testing positive for HPV-16/18 genotype and cytology triage for women positive for other (non-16/18) hrHPV and (B) “HPV (cyto)” strategies involving cytology triage for all hrHPV-positive women. Analysis assumes screening end age of 65 years.
b Strategy name indicates SCREENING TEST 1–interval (years), start age (years)/SCREENING TEST 2–interval (years) (triage strategy for hrHPV-positive women), start age (years). For example, “CYTO-3Y, 21/COTEST-5Y, 30” indicates cytology alone every 3 years starting at age 21 years, with switch to cotesting every 5 years starting at age 30 years.
c Strategy currently recommended by the US Preventive Services Task Force and other guidelines-making organizations.1-3

Return to Table of Contents

Strategy Per 1000 Women
No. Nameb Cytology
Tests
HPV Tests Total Testsc No. of
Colposcopies
CIN 2 or 3
Detected
CIN 3+
Detectedd
False-Positivese Cervical
Cancer Cases
Cervical
Cancer Deaths
Life-Years
0 No screening 0 0 0 0 0 0 0 18.86 8.34 63,921.34
1 CYTO-3Y, 21 13,877 786 14,662 645 160 46 484 2.34 0.76 64,181.89
2 CYTO-3Y, 21/COTEST-5Y, 30 11,425 8380 19,806 1630 201 54 1429 1.08 0.30 64,192.97
3 CYTO-4Y, 21/HPV-3Y (16/18), 25 1905 14,807 16,712 2530 218 57 2312 0.74 0.23 64,195.61
4 CYTO-3Y, 21/HPV-3Y (16/18), 27 2876 13,772 16,648 2278 214 56 2063 0.83 0.25 64,195.08
5 CYTO-3Y, 21/HPV-3Y (16/18), 30 3824 12,428 16,252 1978 205 54 1773 1.01 0.27 64,193.51
6 CYTO-4Y, 21/HPV-5Y (16/18), 25 1706 10,065 11,771 2068 211 55 1857 0.79 0.25 64,195.39
7 CYTO-3Y, 21/HPV-5Y (16/18), 27 2697 9290 11,987 1861 207 55 1655 0.89 0.28 64,194.69
8 CYTO-3Y, 21/HPV-5Y (16/18), 30 3675 8476 12,151 1635 199 53 1435 1.05 0.29 64,193.38
9 CYTO-4Y, 21/HPV-3Y (cyto), 25 2277 14,790 17,067 2209 217 56 1992 0.75 0.23 64,195.53
10 CYTO-3Y, 21/HPV-3Y (cyto), 27 3205 13,738 16,943 1992 213 56 1779 0.85 0.25 64,194.82
11 CYTO-3Y, 21/HPV-3Y (cyto), 30 4102 12,397 16,499 1734 203 54 1530 1.04 0.28 64,193.19
12 CYTO-4Y, 21/HPV-5Y (cyto), 25 1993 10,049 12,042 1826 209 55 1617 0.81 0.25 64,195.35
13 CYTO-3Y, 21/HPV-5Y (cyto), 27 2950 9273 12,223 1648 205 54 1443 0.91 0.28 64,194.44
14 CYTO-3Y, 21/HPV-5Y (cyto), 30 3888 8459 12,348 1452 198 53 1254 1.08 0.29 64,193.07
15 CYTO-4Y, 21/COTEST-3Y, 25 15,723 14,693 30,416 2535 223 57 2312 0.76 0.23 64,195.50
16 CYTO-3Y, 21/COTEST-3Y, 27 15,765 13,723 29,488 2303 218 57 2084 0.83 0.25 64,194.75
17 CYTO-3Y, 21/COTEST-3Y, 30 15,456 12,411 27,867 2021 209 55 1812 1.03 0.27 64,193.17
18 CYTO-4Y, 21/COTEST-5Y, 25 10,944 9914 20,859 2029 213 55 1816 0.82 0.26 64,195.26
19 CYTO-3Y, 21/COTEST-5Y, 27 11,275 9233 20,508 1846 209 55 1637 0.89 0.27 64,194.40

Abbreviations: CIN, cervical intraepithelial neoplasia; CIN 3+, CIN 3 or worse; HPV, human papillomavirus.
a Outcomes calculated from age 20 to 100 years; analysis assumes screening end age of 65 years.
b See Table 2 footnote for description of nomenclature.
c Total number of tests, irrespective of primary, triage, or surveillance context; does not include colposcopies.
d Includes cases of CIN 3 and cervical cancers detected through screening (excludes clinically detected cancers).
e Total number of colposcopies that did not result in CIN 2, CIN 3, or cancer detection.

Return to Table of Contents

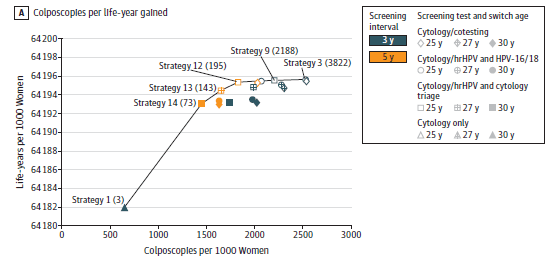

Figure 2A: Colposcopies per Life-Year Gained

The strategy with the lowest number of colposcopies per life-year gained was the current guidelines-based strategy of cytology testing alone every 3 years from ages 21 to 65 years (strategy 1), with 3 colposcopies per life-year gained compared with no screening. By comparison, primary hrHPV and cotesting strategies were associated with both increased life-years and more colposcopies. Primary hrHPV testing with cytology triage every 5 years at a switch age of 30 years (strategy 14) was associated with 73 colposcopies per life-year gained; at a switch age of 27 years (strategy 13), with 143 colposcopies per life-year gained; and at a switch age of 25 years (strategy 12), with 195 colposcopies per life-year gained. Increasing the frequency of screening to 3-year primary hrHPV testing and switching at age 25 years required a much greater number of colposcopies per life-year gained, ranging from 2188 (cytology triage, strategy 9) to 3822 (16/18 genotype triage, strategy 3). All other strategies, including cotesting (strategies 2, 15-19), were not efficient, given the similar gains in life-years but much higher numbers of colposcopy referrals.

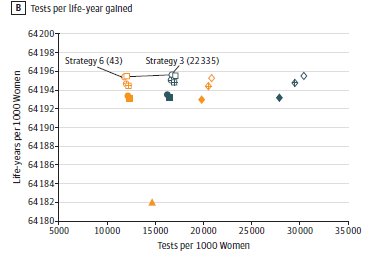

Figure 2B: Tests per Life-Year Gained

When the analysis was expressed in terms of tests (ie, cytology and hrHPV tests) per life-year gained, the only efficient strategies were primary hrHPV testing with 16/18 genotype triage at a switch age of 25 years; the efficiency ratio was 43 tests per life-year gained for 5-year screening (strategy 6) and increased substantially to 22,335 tests per life-year gained for 3-year screening (strategy 3). Both cytology-only and cotesting strategies (strategies 1-2, 15-19) were either equally or less effective but were associated with higher numbers of tests than primary hrHPV testing strategies and were therefore not efficient.

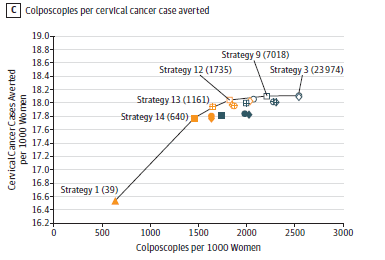

Figure 2C. Colposcopies per Cervical Cancer Case Averted

Efficient strategies were consistent with those identified in the analysis of colposcopies per life-year gained. Cytology-only screening every 3 years (strategy 1) had the lowest ratio of 39 colposcopies per cervical cancer case averted. Switching from cytology to 5-year primary hrHPV testing at age 30 years (strategy 14) was associated with a ratio of 640 colposcopies per cancer case averted; earlier switch ages required a greater number of colposcopies per cancer case averted, ranging from 1161 for switch age 27 years (strategy 13) and 1735 for switch age 25 years (strategy 12). High-risk HPV testing every 3 years at a switch age of 25 years increased the ratio to 7018 colposcopies per cancer case averted (cytology triage, strategy 9) and 23,974 colposcopies per cancer case averted (16/18 genotype triage, strategy 3). As with colposcopies per life-year gained, cotesting strategies (strategies 2, 15-19) were not efficient, given the much higher rate of colposcopy referrals.

Strategies varied in terms of primary screening test (cytology with a switch to cotesting; cytology with a switch to primary high-risk HPV [hrHPV] testing with HPV-16/18 genotype testing for triage of hrHPV-positive women; cytology with a switch to primary hrHPV testing with cytology triage of hrHPV-positive women; cytology only); screening interval (3 years, 5 years); and switch age from cytology to primary hrHPV testing or cotesting (25 years, 27 years, 30 years). The efficiency ratios (values in parentheses) were calculated as the additional number of harms (ie, colposcopies or tests) divided by the additional benefits (ie, life-years gained or cancer case averted) of a specific strategy compared with the strategy having the next fewer harms. Efficient strategies (ie, those that lie on the efficiency frontier [solid lines]) were those that yielded more benefit and less harm than another strategy, or a lower harm to benefit ratio than a strategy with less harms; all other strategies (ie, those that do not lie on the efficiency frontier) were considered “inefficient.” All strategies assume cytology alone starting at age 21 years and a screening end age of 65 years. Tests include the total number of screening tests over the lifetime of screening, including both routine screening and any surveillance testing but not diagnostic (ie, colposcopy and biopsy) testing.

Return to Table of Contents
