Evidence Summary

Chronic Obstructive Pulmonary Disease: Screening

April 05, 2016

Recommendations made by the USPSTF are independent of the U.S. government. They should not be construed as an official position of the Agency for Healthcare Research and Quality or the U.S. Department of Health and Human Services.

By Janelle M. Guirguis-Blake, MD; Caitlyn A. Senger, MPH; Elizabeth M. Webber, MS; Richard A. Mularski, MD; and Evelyn P. Whitlock, MD

The information in this article is intended to help clinicians, employers, policymakers, and others make informed decisions about the provision of health care services. This article is intended as a reference and not as a substitute for clinical judgment.

This article may be used, in whole or in part, as the basis for the development of clinical practice guidelines and other quality enhancement tools, or as a basis for reimbursement and coverage policies. AHRQ or U.S. Department of Health and Human Services endorsement of such derivative products may not be stated or implied.

This article was published in the Journal of the American Medical Association on April 5, 2016.

Return to Table of Contents

Importance: Chronic obstructive pulmonary disease (COPD) is the third leading cause of death in the United States.

Objective: To systematically review literature on the accuracy of screening questionnaires and office-based screening pulmonary function testing and the efficacy and harms of treatment of screen-detected COPD.

Data Sources: MEDLINE, PubMed, and the Cochrane Central Register of Controlled Trials for relevant English-language studies published through January 2015.

Study Selection: Two reviewers independently screened abstracts and studies. The search yielded 13,141 unique citations; 465 full-text articles were reviewed, and 33 studies met the inclusion criteria.

Data Extraction and Synthesis: Two reviewers rated the quality of each study using USPSTF criteria.

Main Outcomes and Measures: Diagnostic accuracy (sensitivity, specificity, positive predictive value [PPV], and negative predictive value [NPV]; treatment efficacy (COPD exacerbations, all-cause mortality, quality of life, and dyspnea); and treatment harms.

Results: All screening questionnaires were based on symptoms as well as risk factors such as age and smoking history. The COPD Diagnostic Questionnaire was the most extensively studied (5 studies, n = 3048), with moderate overall performance for COPD detection: area under the receiver operating characteristic curve (AUC), 0.65 to 0.72; sensitivity, 80% to 93%; and specificity, 24% to 49%, at a threshold of greater than 16.5. Positive predictive value and NPV ranged from 17% to 45% and 76% to 98%, respectively. For pulmonary function–based screening tools, FEV1/FEV6 was the best studied (3 studies, n = 1587), with AUC ranging from 0.84 to 0.85. Sensitivity ranged from 51% to 80%. Specificity (range, 90%–95%) and PPV (range, 63%–75%) appeared better than questionnaires. There was not strong evidence to support that screening and supplying smokers with spirometry results improves smoking cessation rates. Treatment trials were unavailable for screen-detected patients. Trials that reported outcomes in patients with mild to moderate COPD included 2 trials of long-acting β-agonists (LABAs) (n = 3174), 1 RCT of LABAs and inhaled corticosteroids (ICS) (n = 1097), 5 RCTs of the long-acting muscarinic antagonist tiotropium (n = 4592), and 6 RCTs of ICS (n = 3983). They suggested no benefit in all-cause mortality, but a decrease in annual rates of exacerbations with pharmacologic treatments. Few trials reported harms for any individual drug class. Adverse effects were generally mild (eg, dry mouth and cough).

Conclusions and Relevance: There was no direct evidence available to determine the benefits and harms of screening asymptomatic adults for COPD using questionnaires or office-based screening pulmonary function testing or to determine the benefits of treatment in screen-detected populations. Indirect evidence suggests that the COPD Diagnostic Questionnaire has moderate overall performance for COPD detection. Among patients with mild to moderate COPD, the benefit of pharmacotherapy for reducing exacerbations was modest.

Return to Table of Contents

Chronic lower respiratory disease, composed chiefly of chronic obstructive pulmonary disease (COPD), was the third leading cause of death in the United States in 2013.1, 2 Cigarette smoke exposure, either directly or indirectly, has been highly correlated with the development of COPD and COPD mortality.3-7 In theory, primary care physicians can identify undetected COPD by screening relatively unselected, asymptomatic individuals or by targeting a high-risk asymptomatic population using screening spirometry, followed by confirmatory diagnostic spirometry in primary care or pulmonary specialty clinics.7, 8 Current clinical practice guidelines recommend against screening for COPD in asymptomatic patients; however, many professional organizations recommend case-finding among patients presenting with respiratory symptoms associated with the disease, such as dyspnea, chronic cough, or sputum production.7-9

In 2008, the US Preventive Services Task Force (USPSTF) recommended against screening asymptomatic adults for COPD using spirometry (grade D).10 The USPSTF concluded that this method had no net benefit and had large associated opportunity costs. The aim of this systematic review is to update the evidence on the benefits and harms of screening for COPD using questionnaires and spirometry, including the diagnostic accuracy of primary care–feasible screening instruments; the effect of spirometric screening on uptake of targeted preventive services; and the effectiveness, benefits, and harms of treating screen-detected patients (generally those with mild to moderate COPD) since the last recommendation.

Return to Table of Contents

Scope of the Review

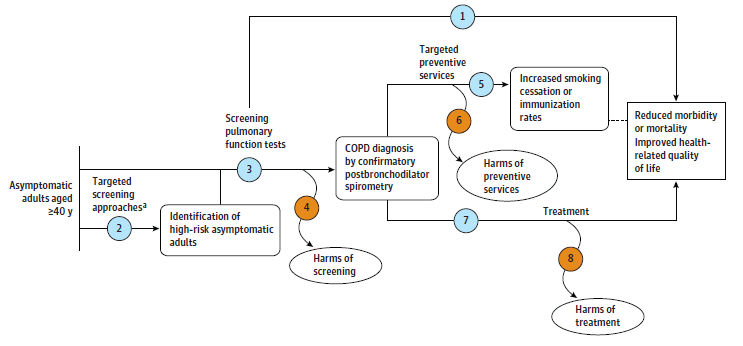

To conduct this review, an analytic framework was developed with 8 key questions (KQs) (Figure 1) that examined the effect of screening asymptomatic adults 40 years and older for COPD on health outcomes (KQ 1); the accuracy and harms of screening questionnaires and pulmonary function tests (KQs 2–4); the effectiveness and harms of COPD screening on the uptake of targeted preventive services (KQs 5 and 6); and the effectiveness and harms of treatment of asymptomatic mild to moderate COPD (KQs 7 and 8). Detailed methods and results are available in the full evidence report.11 The analytic framework, review questions, and methods for locating and qualifying evidence reflect public input after posting on the USPSTF website.

Data Sources and Searches

Searches included MEDLINE, PubMed, the Cumulative Index to Nursing and Allied Health Literature, and the Cochrane Central Register of Controlled Trials from January 2000 to January 2015, supplemented by checking reference lists from relevant systematic reviews. Evaluating the effect of a COPD diagnosis on pneumococcal and influenza immunization rates was a new question to this review; therefore, databases were searched from inception through January 2015. Since January 2015, we have continued to conduct ongoing surveillance through article alerts and targeted searches of high-impact journals to identify major studies published in the interim that may affect the conclusions or understanding of the evidence and therefore the related USPSTF recommendation. The last surveillance was conducted on January 22, 2016, and identified no new studies.

Study Selection

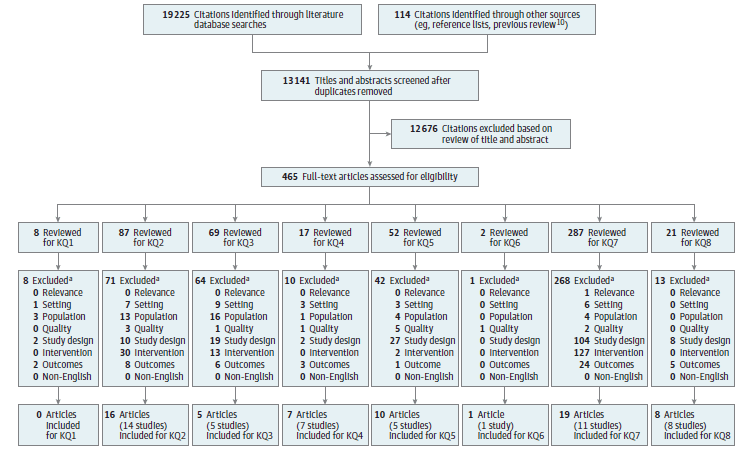

Two reviewers independently reviewed 13,141 unique citations and 465 full-text articles against a priori inclusion criteria (Figure 2 and eMethods in the Supplement). For KQs 1 through 6, we initially considered studies including asymptomatic adults 40 years and older (limited to current smokers for KQ 5a). For questions 7 and 8, we restricted the population further to include only asymptomatic adults 40 years and older who were also diagnosed with mild COPD (forced expiratory volume in 1 second [FEV1] ≥80% normal) to moderate COPD (FEV1 50%–79% normal) or a mean population FEV1 greater than or equal to 60% predicted to approximate a population of mild to moderate COPD. Asymptomatic patients were defined as those in 1 of the following states: free of the disease; the disease is present, but the patient has physical symptoms that are undetected by the patient or the clinician; or the patient has nonspecific symptoms that have gone unrecognized as being related to COPD. For KQs 2 and 4, we analyzed COPD prescreening questionnaires feasible in primary care with published studies describing their original development, internal validation, and external validation; results are reported only for COPD screening questionnaires with external validation, which is the minimal requirement for consideration in clinical practice.12, 13 For KQ 2, the initial search was for risk factor–only based screening questionnaires, which would capture an asymptomatic population. However, because none were identified, risk factor– and symptom-based prescreening questionnaires were included. For KQ 3, we examined primary care–feasible screening pulmonary function tests (eg, handheld devices or prebronchodilator testing requiring minimal personnel training).

For the treatment questions, the search included treatment efficacy literature for the following COPD drug classes or combinations of any of the following: long-acting β-agonists (LABAs), long-acting anticholinergics, and inhaled corticosteroids (ICS). Because there were no trials in screen-detected or asymptomatic populations, the included population was expanded to those diagnosed with mild to moderate disease because observational studies show that 84% to 95% of screen-detected patients are expected to have mild to moderate COPD.14-17

For KQs 1, 5, and 7, the study design was limited to randomized clinical trials (RCTs). For KQs 2 and 3, designs were limited to diagnostic accuracy studies (including cross-sectional and cohort studies) with a reference standard COPD definition of a postbronchodilator ratio of FEV1 to forced vital capacity (FVC) of less than 0.70.7 For KQs 4 and 6, RCTs, large screening registry or database observational studies, and cohort studies were considered. When evaluating harms associated with the treatment of COPD (KQ 8), the data were limited to what was reported in the efficacy trials included in KQ 7, large screening registries, and systematic reviews, supplemented with information reported by the US Food and Drug Administration.

Data Extraction and Quality Assessment

One reviewer extracted study-level data into standardized evidence tables; a second checked for accuracy. Articles meeting inclusion criteria were critically appraised by 2 independent reviewers using predefined criteria18-21 with disagreements resolved by a third investigator. Included studies were limited to those published in English that were rated as good or fair quality using USPSTF quality rating standards.18 (Details are available in eTables 1 and 2 in the Supplement.)

Data Synthesis and Analysis

Data from the included studies were qualitatively examined to identify a range of results. Given the clinical heterogeneity of studies, meta-analyses were not conducted for any of the questions in this review.

For studies of diagnostic accuracy, 2 × 2 tables were constructed from data reported in the primary studies. When 95% CIs were not reported for diagnostic accuracy estimates, these intervals were calculated using Jeffrey confidence intervals (Stataversion 13.1). For diagnostic accuracy studies, in addition to the standard test performance characteristics (area under the receiver operating characteristic [ROC] curve, sensitivity, specificity, positive predictive value [PPV], negative predictive value [NPV]), we calculated the following outcomes: COPD prevalence in the population, percentage of patients screening positive, false-positive rate, and the percentage of missed cases.

Return to Table of Contents

Thirty-three studies (48 articles) met the inclusion criteria for this systematic review (Figure 2). This article provides a summary of results that supported the USPSTF recommendation process.

Effect of Screening on Health Outcome

KQ 1: Does screening asymptomatic adults 40 years and older for COPD with prebronchodilator screening spirometry improve health-related quality of life or reduce morbidity or mortality?

There was no direct evidence comparing the effectiveness of COPD screening and no screening on patient health outcomes.

Screening Questionnaires

KQ 2: Can high-risk asymptomatic adults who are more likely to test positive on screening for COPD be reliably identified using prescreening questionnaires?
KQ 4: What are the adverse effects of screening for COPD using prescreening questionnaires?

No relevant studies of COPD screening questionnaires in asymptomatic populations were identified that were based solely on risk factors. Three externally validated prescreening questionnaires were identified that assessed risk factors and respiratory symptoms to select high-risk patients for screening spirometry: the COPD Diagnostic Questionnaire (CDQ), the Lung Function Questionnaire (LFQ), and the COPD Population Screener (COPD-PS). The predictive accuracy of these questionnaires in all included studies was measured against the postbronchodilator FEV1/FVC reference standard according to the Global Initiative for Chronic Obstructive Lung Disease COPD definition and American Thoracic Society and European Respiratory Society quality standards.7, 22, 23

The CDQ is an externally validated, 8-item, self-administered, symptom- and risk factor–based COPD prescreening questionnaire used to select high-risk patients for screening spirometry, which assigns scores for established risk factors including age, pack-years of smoking, and body mass index (BMI) as well as symptoms and allergy history (Table 1).14, 17, 24-28 Possible scores range from 0 to 38 (higher scores associated with higher COPD risk), with highest scores attributed to older age (score 10 for ≥70 years), greater pack-years (score 7 for ≥50 pack-years), and lower BMI (score 5 for BMI). Two cut points (16.5 and 19.5) have been proposed to select patients for screening spirometry based on ROC curves from the original development study.30 The original development and internal validation was performed in a primary care–based US and UK cross-sectional study of 818 past and current smokers 40 years and older.31

The CDQ has been externally validated in 5 fair- to good-quality diagnostic accuracy studies mainly focusing on primary care European and Australian populations.14, 17, 24-26 The study populations varied; 3 studies recruited solely current or ever-smokers from primary care, the general population, or both,17, 24, 26 and 2 studies recruited patients from primary care clinics without regard to smoking history.14, 25 Chronic obstructive pulmonary disease was diagnosed by spirometry in 10.3% to 41.1% of participants in each of the 4 studies that reported this outcome, with the highest prevalence (41.1%) being reported in a study that required participants to be current smokers with at least a 10 pack-year history and have at least 1 respiratory symptom; these participants were essentially prescreened, thereby selecting for those most likely to have COPD.26 Prevalence of COPD in the studies recruiting ever-smokers ranged from 13.1% to 27.9%,17, 24 and 1 general population study with more than half nonsmoking participants had an overall COPD prevalence of 10.3%, which was higher (17.2%) among ever-smokers.14 The majority of patients found to have COPD were identified as having mild or moderate disease (83.8%–94.7%).

Most external validation studies reported that a CDQ score greater than 16.5 had a sensitivity ranging from 80% to 91% and specificity ranging from 24% to 49% for identifying those who test positive using spirometric confirmation for COPD (Table 1). Choosing a higher cut point (19.5) reduced sensitivity and NPV but increased specificity and PPV. The proportion of cases missed by the CDQ (false-negative rate) varied widely, from 9.0% to 37.0%, and was lowest when using the most sensitive screening threshold (see full evidence report11). For the threshold of less than 16.5 for screen negatives, and limiting to studies in which fewer than 20% of spirometry tests were invalid or incomplete, the proportion of missed spirometry-diagnosed COPD was around 10%. In these studies, increasing the screening threshold to less than 19.5 increased the missed COPD cases to 27.9% to 34.2% in best estimates.

Simple tables were constructed to compare screening test performance using the CDQ across a range of populations, using the mean sensitivity and specificity of applicable studies. Table 2 shows the trade-offs with missed cases and false-positive tests in populations with varying COPD prevalence at the 2 cut points (16.5 and 19.5).

The LFQ and COPD-PS are both 5-item self-administered risk factor– and symptom-based questionnaires (Table 1). The LFQ assigns scores to age; smoking history (pack-years, never/current/former smoker); and presence of wheezing, dyspnea, and mucous productive cough. Possible scores range from 5 to 25, with lower scores associated with higher COPD risk. A threshold of 18 or less has been proposed as a cut point for COPD risk warranting pulmonary function diagnostic workup. Although the LFQ was specifically developed in the National Health and Nutrition Examination Survey population with chronic bronchitis and studied in US primary care practices,32, 33 data for this questionnaire were limited to a single validation study.27 This external validation study, however, had quality concerns (31% of spirometry was invalid or incomplete) and relatively poorer test performance than the CDQ (lower sensitivity, specificity, PPV, and NPV) when used in similar populations. In addition, we could not assess the harms of screening (ie, rate of false positives or proportion of missed cases) using the LFQ because only a subset of screen-negative patients were selected for spirometry.

The COPD-PS assigns scores for age, smoking history, dyspnea, sputum production, and dyspnea-related functional limitations. Possible scores range from 0 to 10, with higher scores being associated with a higher risk of COPD. A threshold of 5 to 6 or more has been proposed as a cut point for COPD risk warranting pulmonary function test workup. Although the COPD-PS was derived in an enriched sample of US pulmonary and primary care clinics,34 its external validation in a single Japanese population-based study makes conclusions regarding generalizability of accuracy results limited.28 The COPD-PS has recently been applied in a multisite, US-based primary care, pragmatic COPD screening trial (n = 8770); however, this trial did not include the reference standard of spirometry for accuracy estimation.35

Screening Pulmonary Function Tests

KQ 3: What is the test performance of screening pulmonary function tests in predicting diagnosis of COPD based on confirmation using postbronchodilator spirometry to identify fixed airflow obstruction in asymptomatic adults?
KQ 4: What are the adverse effects of screening for COPD using screening pulmonary function tests?

One good-quality and 4 fair-quality diagnostic accuracy studies were identified that evaluated 2 different handheld pulmonary function screening tests against a postbronchodilator FEV1/FVC reference standard: FEV1/FEV614, 17, 36 (delivered either before or after the bronchodilator) (Table 3) and peak expiratory flow (PEF).37, 38 The included populations varied in their selectivity in terms of age, smoking status, symptomatology, and exclusion of preexisting COPD.

Three studies (1 good-quality and 2 fair-quality) reported the screening test performance of FEV1/FEV6 (n = 1587).14, 17, 36 Two studies assessing prebronchodilator FEV1/FEV6 among ever-smokers found similar sensitivities (51% and 53%) and specificities (90% and 93%) (Table 3).17, 36 The third study14 used postbronchodilator FEV1/FEV6 for screening; sensitivity was much higher (80%) than the 2 prebronchodilator studies,17, 36 and specificity was as good or better (95%).14 However, the sample was enriched with current smokers, which would increase the predictive value. In a subsample limited to ever-smokers, postbronchodilator screening appeared similar to screening test performance in the entire population, suggesting that postbronchodilator FEV1/FEV6 performs better than prebronchodilator testing.

Harms of screening pulmonary function testing included false positives and false negatives (missed cases). False-negative rates (proportion of total diagnoses missed) ranged from 14% to 49%, depending on the threshold used (see full evidence report11). The FEV1/FEV6 index test threshold of less than 0.70 showed the lowest rate of false negatives (19.8%) seen after postbronchodilator index testing.14 Using a prebronchodilator cutoff of FEV1/FEV6 less than 0.70, the missed cases in 2 of the trials approached 50% (see full evidence report11).17, 36 False-positive rates for the less than 0.70 threshold ranged from 5.2% to 10.5%,14, 17, 36 with the lowest rate seen in the single study using postbronchodilator testing.14

Mean sensitivity and specificity were used to construct simple tables to compare screening test performance using the prebronchodilator and postbronchodilator FEV1/FEV6 across a range of populations. Table 2 shows the trade-offs with missed cases and false-positive tests in populations with varying COPD prevalence.

Two fair-quality studies of PEF evaluated the largest number of patients (n = 23,098).37, 38 However, these were based on large population-based studies whose primary aims were to describe the prevalence of COPD internationally. Because the studies did not exclude persons with preexisting COPD and also included several developing countries with environmental exposures that would be not be considered generalizable to the United States, their results are less applicable to screening.

Targeted Preventive Services

KQ 5: Does identifying asymptomatic adults with fixed airflow obstruction through screening improve the delivery and uptake of targeted preventive services?
KQ 5a: Does screening for COPD increase smoking cessation rates among asymptomatic adults compared with usual care?
KQ 5b: Does screening for COPD increase relevant immunization rates among asymptomatic adults compared with usual care?
KQ 6: What are the adverse effects of COPD screening, including the effect of targeted preventive services in this population?

Five fair-quality studies (n = 1694) were identified that addressed the incremental value of adding spirometry to existing smoking cessation counseling interventions to improve smoking cessation rates (Table 4).39-43 There was not strong evidence to support the premise that supplying smokers with spirometry results improves smoking cessation rates. No trials randomized patients without known COPD diagnoses to screening spirometry vs no spirometry in order to estimate the independent value of screening spirometry. Instead, in all studies control groups received almost the same smoking cessation support as the spirometry group; studies varied in whether the control group received spirometry testing39, 41 or not40, 42, 43 and in whether smoking cessation support was tailored based on spirometry or other medical examination findings. Of the 5 included RCTs, a single fair-quality trial giving patients their "lung age" reported a statistically significant difference in biochemically validated abstinence in the intervention group compared with the control group rates after 12 months of follow-up (n = 561; 13.6% vs 6.4%; validated quit rate difference, 7.2% [95% CI, 2.2%–12.1%]; number needed to treat [NNT],14); however, both the control and treatment groups underwent spirometry, so the trial actually tested the method of communicating spirometry results rather than the value of the screening spirometry itself.41 Most of the other trials either reported higher abstinence rates that were not statistically significant or no difference in the intervention group compared with control (Table 4).

There was little evidence examining the potential negative effect of COPD screening on targeted preventive services; little can be concluded from the included qualitative study reporting that some smokers felt that confrontation with spirometry would interfere with personal choice.39

No trials were identified reporting the effect of COPD screening on recommended immunization uptake rates.

Treatment Efficacy and Harms

KQ 7: Does treatment for asymptomatic adults identified with mild to moderate COPD through screening improve health-related quality of life or reduce morbidity or mortality?
KQ 8: What are the adverse effects of COPD treatments in this population?

Twenty studies of 14 distinct trials were identified for the 3 included drug classes and 1 combination treatment: 2 trials of LABAs,44, 45 1 RCT of LABAs plus ICS,45 5 RCTs of the long-acting muscarinic antagonist (LAMA) tiotropium,44, 46-48 and 6 RCTs of ICS45, 49-53 (Table 5).54, 55

No studies were found in patients with screen-detected COPD and relatively few in patients with mild COPD (FEV1 ≥80% predicted).

Most of the subanalyses of patients with mild to moderate COPD in treatment trials included populations at the more severe end of moderate COPD.

LABAs

One post hoc subanalysis of a large 4-group RCT and 1 post hoc pooled subanalysis from 3 other RCTs (n = 3174) were identified (Table 5).44, 45 Based on 1 subanalysis reporting each outcome (all-cause mortality, exacerbations, health-related quality of life [HrQOL], and dyspnea scores), LABAs appeared to reduce exacerbations and dyspnea scores; results were mixed for HrQOL, and no trials reported exercise capacity. Results for harms were rarely reported, with few differences between treated and untreated groups for a variety of individual adverse events; however, lower rates of study withdrawal and pneumonia were reported in 1 trial in patients treated with salmeterol (Table 6).44-46, 50, 51, 53-55

ICS

One trial of patients with mild to moderate COPD, 2 post hoc subanalyses of RCTs, and 2 RCTs of patients with a mean FEV1 greater than or equal to 60% (n = 3983) were identified (Table 5). Despite the rarely reported outcomes and limitations, overall results seemed to indicate a reduction in COPD exacerbations with ICS; however, exacerbations were variably defined, and therefore annual rates of exacerbations varied widely. Results from the 1 trial in patients with mild to moderate COPD (EUROSCOP; n = 1175) showed a statistically significant difference in exacerbation rates, but because the annual rates of exacerbations were very low (<0.1 exacerbations/y) in patients with milder COPD severities, the absolute difference was very small (absolute difference of 0.02 exacerbations/y).49 Data were not sufficiently reported to make firm conclusions about the effect of ICS treatment on dyspnea or HrQOL.

Six RCTs reported treatment harms associated with ICS among patients with mild to moderate COPD (Table 6).45, 49-53 Overall, withdrawal rates between treatment groups were similar in the 4 trials that reported these data.45, 49-51 Results of the composite outcome of any adverse event or serious adverse events were mixed but generally showed few differences between treated and untreated groups. Data on pneumonia, bone mineral density, and fractures were sparse and mixed. One post hoc subanalysis reported more ischemic cardiac events among those in the placebo group (3.0% vs 5.3%; P = 0.048), although these results should be interpreted with caution due to study methods (see full evidence report11).54

LABAs and ICS

The 1 included post hoc subanalysis among patients with moderate COPD (n = 1097) suggested a possible all-cause mortality benefit that was not seen in the main trial across all stages of COPD (Table 5).45 In addition, data showed a statistically significant, but probably not clinically meaningful, improvement in HrQOL and a reduction in exacerbations; however, more evidence is required to make firm conclusions.

Two treatment effectiveness RCTs provided data on harms associated with treating patients with mild to moderate COPD with the combination of LABAs and ICS (Table 6).45, 51 Withdrawal rates appeared to be mixed, with the subanalysis of the TORCH trial reporting lower rates of withdrawal among patients treated with salmeterol and fluticasone than those treated with placebo,45 and another trial reporting similar rates of withdrawal between treatment groups.51 Only the subanalysis of the TORCH trial reported on the incidence of composite or individual adverse events. It showed similar rates between treated and control groups, except perhaps a higher risk for pneumonia with treatment, in contrast to findings for LABAs in the same study.45 Paucity of data made robust conclusions challenging.

LAMA

A single trial of the LAMA tiotropium in patients naive to maintenance treatment with moderate COPD (n = 457)55 and 4 subgroup analyses examining those with mild to moderate COPD were identified (Table 5).44, 46-48 Results were mixed for the effect of tiotropium on exacerbations and HrQOL, although the majority of the evidence suggested a beneficial effect on both outcomes. The trial of treatment-naive patients with moderate COPD most approximated a screen-detected population and showed a statistically significant reduction in exacerbations and statistically significant, but probably not clinically meaningful, difference in work productivity scores.55

Two treatment effectiveness RCTs46, 55 and 1 post hoc analysis of pooled study data44 provided few data on harms associated with tiotropium (Table 6). One trial46 reported very similar withdrawal rates with and without tiotropium, with approximately half of these withdrawals attributed to adverse events in both groups; 1 study reported higher rates of any adverse event in the tiotropium group compared with control (67% v 55.9%, no statistical testing), but 1 study reported no difference in serious events.44, 55

Overall, the treatment literature was largely based on patients with COPD on the more severe range of moderate, so applicability to a screen-detected asymptomatic population may not be appropriate. Furthermore, there were a number of limitations in the included subgroup analyses for all classes of medications, such as 1) the primary trials were powered for the entire population, not the subgroup; 2) analyses were mostly post hoc; and 3) interaction testing and adjustment for confounders were rarely performed. The inconsistency in reported outcomes across the studies further limited the strength of available evidence. The most inconsistency was seen in the definitions of exacerbations used in the studies. Most studies defined an exacerbation as requiring treatment with an antibiotic or systemic corticosteroid; however, other studies included patient-reported increase in symptoms. Fewer than 5 trials reported harms for any individual medication class in patients with mild to moderate COPD, limiting the ability to make firm conclusions regarding the risk of treating patients with early disease.

Return to Table of Contents

An overall summary of the evidence is presented in Table 7. No population-based trials were identified that compared screening with no screening to determine whether primary care screening for COPD improves health outcomes. Through the indirect evidence pathway, we found that the CDQ appears to be the strongest risk factor– and symptom-based questionnaire, demonstrating reasonable sensitivity and specificity for scores greater than 16.5, based on 5 external validation studies. However,no treatment trials in screen-detected populations were identified; treatment trials and sub analyses in populations with symptomatic mild to moderate COPD supported a modest reduction in exacerbation frequency. Strong evidence was not found to support screening as a means to improve smoking cessation rates or other preventive services.

The value assigned to screening for COPD depends not only on the accuracy of screening tools; it requires judgments about the evidence for the benefit of earlier identification balanced against the harms of missed cases, false-positive diagnostic work ups, and treatment harms. Earlier identification could lead to net screening benefits if there was evidence of beneficial outcomes derived from downstream treatment in early-stage asymptomatic disease or improvements in the uptake of preventive interventions. However, the treatment literature was largely limited to subgroup analyses, almost exclusively among individuals with moderate COPD and primarily the severe end of moderate (eg, FEV1 % predicted of approximately 60% in many studies). Even among these groups, the benefits on exacerbations and dyspnea scores with early treatment in patients with moderate COPD are not strongly established,and the clinical significance of the observed reduction may be limited. Absolute treatment benefit estimates would be expected to be lower in screen-detected populations with mostly mild disease compared with the populations in the trials available for this systematic review. Epidemiologic studies report that patients with mild to moderate COPD have an average of less than 1 exacerbation per year.7 A systematic review of RCTs and cohort studies reported an annual event-based exacerbation frequency (defined as physician office visits, antibiotic use, steroid use, or hospitalizations) of 0.82 (95% CI, 0.46-1.49) for mild disease and 1.17 (95% CI, 0.93-1.50) for moderate disease.56 Patients with screen-detected COPD might be expected to have even fewer exacerbations, which would render the absolute benefit as at best modest. Limited data on harms reported in the treatment effectiveness trials suggest that there are no substantial serious adverse effects for most medications. However, some concerns remain about ICS-containing medications increasing the incidence of pneumonia in patients with more severe COPD and effects on bone mineral density and fracture risk.57, 58 Data were too limited to make firm conclusions regarding this potential harm in the included trials for screen-detected individuals with mild to moderate COPD.

Arguments have been made that the high prevalence of undiagnosed COPD (10%-20%),16 as well as clinical COPD misdiagnoses in smokers who are found to have alternate treatable diagnoses (eg, congestive heart failure) could be considered as potential benefits with few screening-related harms, because spirometry is a simple, noninvasive test.59, 60 In contrast, however, are concerns about the patient-focused benefits of population screening efforts in largely asymptomatic patients, particularly in light of little evidence on treatment benefit in mild disease, opportunity costs associated with screening, and high monthly costs of these inhaled medications.61-63

A large potential benefit from COPD screening would be increasing smoking cessation rates, because smoking cessation is the only proven beneficial treatment for reducing progression in mild to moderate COPD.64 Smoking cessation counseling and pharmacotherapy are effective in patients with COPD,65-67 even though there is some evidence that smokers with COPD differ in their motivation to quit compared with smokers without COPD.68-71 The lung age trial by Parkes et al41 was the only trial reporting a statistically significant absolute increase in biochemically confirmed cessation rates (7%) when screening results reported lung age to participants (NNT = 14). Because both groups received spirometry and counseling, the communication of lung damage might be the critical component in counseling. However, these positive results have not been replicated in other trials.40 On the other hand,we did not identify literature to support the premise that false reassurance in those with normal spirometry may dampen motivation to quit. No completed or pending trials reporting the effect of COPD screening on recommended immunization uptake rates were identified.

A challenging issue when considering screening for COPD is the requirement for an asymptomatic population. All questionnaires included symptoms as part of their scoring, and the rationale for screening has largely been a case-finding one (ie, there is substantial undiagnosed disease seen in primary care). As per USPSTF scope, the systematic review was focused on asymptomatic individuals. However, the distinction between patients who are symptomatic and those who are undetected or who present with nonspecific symptoms was difficult to determine from available clinical research. Because there were few RCTs or screening studies, and the ones identified were clinically and methodologically diverse,we were limited to qualitative analysis. Our a priori methods specified patient-focused outcomes and did not include changes in FEV1 because it is unclear how changes in FEV1 correlate with changes in patient-oriented health outcomes such as exacerbation rates. In addition, we relied on harms data as reported in the effectiveness RCTs and thus may not have captured the full range of potential adverse effects or their population-based incidence. It is unlikely,however, that observational studies in screen-detected populations applicable to US-based primary care are readily available given current practice.

Return to Table of Contents

There was no direct evidence available to determine the benefits and harms of screening asymptomatic adults for COPD using questionnaires or office-based screening pulmonary function testing or to determine the benefits of treatment in screen-detected populations. Indirect evidence suggests that the CDQ has moderate overall performance for COPD detection. Among patients with mild to moderate COPD, the benefit of pharmacotherapy for reducing exacerbations was modest.

Return to Table of Contents

Source: This article was first published in the Journal of the American Medical Association on April 5, 2016 (JAMA. 2016;315(13)1378-1393).

Conflict of Interest Disclosures: All authors have completed and submitted the ICMJE Form for Disclosure of Potential Conflicts of Interest and none were reported.

Funding/Support: This research was funded by the Agency for Healthcare Research and Quality (AHRQ) under a contract to support the US Preventive Services Task Force (USPSTF).

Role of the Funder/Sponsor: This review was conducted by the Kaiser Permanente Research Affiliates Evidence-based Practice Center under contract to AHRQ. Investigators worked with USPSTF members and AHRQ staff to develop the scope, analytic framework, and key questions for this review. AHRQ had no role in study selection, quality assessment, or synthesis. AHRQ staff provided project oversight, reviewed the report to ensure that the analysis met methodological standards, and distributed the draft for peer review. Otherwise, AHRQ had no role in the design and conduct of the study; collection, management, analysis, and interpretation of the data; preparation, review, or approval of the manuscript; and decision to submit the manuscript for publication.

Additional Contributions: We gratefully acknowledge the following individuals for their contributions to this project: the AHRQ staff; the US Preventive Services Task Force; and Evidence-based Practice Center staff members Smyth Lai, MLS; Kevin Lutz, MFA; and Keshia Bigler, BS. USPSTF members and peer reviewers did not receive financial compensation for their contributions.

Additional Information: A draft version of this evidence report underwent external peer review from 3 content experts (Daniel Kotz, PhD, Maastricht University; Anthony Stanley, MD, University of South Wales; and Barbara Yawn, MD, University of Minnesota). Comments were presented to the USPSTF during its deliberation of the evidence and were considered in preparing the final evidence review.

Return to Table of Contents

1. Ford ES, Croft JB, Mannino DM, et al. COPD surveillance: United States, 1999-2011. Chest. 2013;144(1):284-305.
2. Kochanek KD, Murphy SL, Xu J, Arias E. Mortality in the United States, 2013. NCHS Data Brief. 2014;(178):1-8.
3. Chronic obstructive pulmonary disease (COPD) fact sheet. American Lung Association. http://www.lung.org/lung-disease/copd/resources/facts-figures/COPD-Fact-Sheet.html . Accessed March 9, 2016.
4. COPD data and statistics. Centers for Disease Control and Prevention. https://www.cdc.gov/copd/data.html . Accessed May 6, 2019.
5. Mannino DM, Gagnon RC, Petty TL, Lydick E. Obstructive lung disease and low lung function in adults in the United States: data from the National Health and Nutrition Examination Survey, 1988-1994. Arch Intern Med. 2000;160(11):1683-1689.
6. Hooper R, Burney P, Vollmer WM, et al. Risk factors for COPD spirometrically defined from the lower limit of normal in the BOLD project. Eur Respir J. 2012;39(6):1343-1353.
7. Global strategy for diagnosis, management, and prevention of COPD: 2016. Global Initiative for Chronic Obstructive Lung Disease. http://www.goldcopd.org/guidelines-global-strategy-for-diagnosis-management.html . Accessed March 9, 2016.
Centers for Disease Control and Prevention. Chronic obstructive pulmonary disease among adults—United States, 2011. MMWR Morb Mortal Wkly Rep. 2012;61(46):938-43.
8. Qaseem A, Wilt TJ, Weinberger SE, et al. Diagnosis and management of stable chronic obstructive pulmonary disease: a clinical practice guideline update from the American College of Physicians, American College of Chest Physicians, American Thoracic Society, and European Respiratory Society. Ann Intern Med. 2011;155(3):179-91.
9. Chronic obstructive pulmonary disease in over 16s: NICE guidelines. National Institute for Health and Care Excellence. https://www.nice.org.uk/guidance/cg101 . Accessed March 9, 2016.
10. US Preventive Services Task Force. Screening for chronic obstructive pulmonary disease using spirometry: US Preventive Services Task Force recommendation statement. Ann Intern Med. 2008;148(7):529-534.
11.Guirguis-Blake JM, Senger CA, Webber EM, Mularski RA, Whitlock EP. Screening for Chronic Obstructive Pulmonary Disease: A Systematic Evidence Review for the U.S. Preventive Services Task Force. Evidence Synthesis No. 130. Rockville, MD: Agency for Healthcare Research and Quality; 2016. AHRQ Publication No. 14-05205-EF-1.
12. Moons KG, Altman DG, Reitsma JB, et al. Transparent Reporting of a multivariable prediction model for Individual Prognosis or Diagnosis (TRIPOD): explanation and elaboration. Ann Intern Med. 2015;162(1):W1-W73.
13. Bouwmeester W, Zuithoff NP, Mallett S, et al. Reporting and methods in clinical prediction research: a systematic review. PLoS Med. 2012;9(5):1-12.
14. Sichletidis L, Spyratos D, Papaioannou M, et al. A combination of the IPAG questionnaire and PiKo-6 flow meter is a valuable screening tool for COPD in the primary care setting. Prim Care Respir J. 2011;20(2):184-189.
15. Buffels J, Degryse J, Heyrman J, Decramer M; DIDASCO Study. Office spirometry significantly improves early detection of COPD in general practice: the DIDASCO Study. Chest. 2004;125(4):1394-1399.
16. Tinkelman DG, Price D, Nordyke RJ, Halbert RJ. COPD screening efforts in primary care: what is the yield? Prim Care Respir J. 2007;16(1):41-48.
17. Frith P, Crockett A, Beilby J, et al. Simplified COPD screening: validation of the PiKo-6 in primary care. Prim Care Respir J. 2011;20(2):190-198.
18. US Preventive Services Task Force. US Preventive Services Task Force Procedure Manual. Rockville, MD: Agency for Healthcare Research and Quality; 2008. AHRQ Publication 08-05118-EF.
19. National Institute for Health and Clinical Excellence. The Guidelines Manual. London, United Kingdom: National Institute for Health and Clinical Excellence; 2006.
20. Whiting P, Rutjes AW, Reitsma JB, Bossuyt PM, Kleijnen J. The development of QUADAS: a tool for the quality assessment of studies of diagnostic accuracy included in systematic reviews. BMC Med Res Methodol. 2003;3:25.
21. Whiting PF, Rutjes AW,Westwood ME, et al; QUADAS-2 Group. QUADAS-2: a revised tool for the quality assessment of diagnostic accuracy studies. Ann Intern Med. 2011;155(8):529-536.
22. Miller MR, Hankinson J, Brusasco V, et al; ATS/ERS Task Force. Standardisation of spirometry. Eur Respir J. 2005;26(2):319-338.
23. Miller MR, Crapo R, Hankinson J, et al; ATS/ERS Task Force. General considerations for lung function testing. Eur Respir J. 2005;26(1):153-161.
24. Stanley AJ, Hasan I, Crockett AJ, van Schayck OC, Zwar NA. Validation of the COPD Diagnostic Questionnaire in an Australian general practice cohort: a cross-sectional study. Prim Care Respir J. 2014;23(1):92-97.
25. Dirven JA, Tange HJ, Muris JW, van Haaren KM, Vink G, van Schayck OC. Early detection of COPD in general practice: implementation, workload and socioeconomic status: a mixed methods observational study. Prim Care Respir J. 2013;22(3):338-343.
26. Kotz D, Nelemans P, van Schayck CP, Wesseling GJ. External validation of a COPD diagnostic questionnaire. Eur Respir J. 2008;31(2):298-303.
27. Mintz ML, Yawn BP, Mannino DM, et al. Prevalence of airway obstruction assessed by Lung Function Questionnaire. Mayo Clin Proc. 2011;86(5):375-381.
28. Tsukuya G, Matsumoto K, Fukuyama S, et al; Hisayama Pulmonary Physiology Study Group. Validation of a COPD screening questionnaire and establishment of diagnostic cut-points in a Japanese general population: the Hisayama study. Allergol Int. 2015;64(1):49-53.
29. Begg CB, Greenes RA. Assessment of diagnostic tests when disease verification is subject to selection bias. Biometrics. 1983;39(1):207-215.
30. Price DB, Tinkelman DG, Nordyke RJ, et al; COPD Questionnaire Study Group. Scoring system and clinical application of COPD diagnostic questionnaires. Chest. 2006;129(6):1531-9.
31. Price DB, Tinkelman DG, Halbert RJ, et al. Symptom-based questionnaire for identifying COPD in smokers. Respiration. 2006;73(3):285-95.
32. Hanania NA, Mannino DM, Yawn BP, et al. Predicting risk of airflow obstruction in primary care: validation of the Lung Function Questionnaire (LFQ). Respir Med. 2010;104(8):1160-1170.
33. Yawn BP, Mapel DW, Mannino DM, et al; Lung Function Questionnaire Working Group. Development of the Lung Function Questionnaire (LFQ) to identify airflow obstruction. Int J Chron Obstruct Pulmon Dis. 2010;5:1-10.
34. Martinez FJ, Raczek AE, Seifer FD, et al; COPD-PS Clinician Working Group. Development and initial validation of a self-scored COPD Population Screener Questionnaire (COPD-PS). COPD. 2008;5(2):85-95.
35. Yawn BP, Duvall K, Peabody J, et al. The impact of screening tools on diagnosis of chronic obstructive pulmonary disease in primary care. Am J Prev Med. 2014;47(5):563-575.
36. Thorn J, Tilling B, Lisspers K, Jörgensen L, Stenling A, Stratelis G. Improved prediction of COPD in at-risk patients using lung function pre-screening in primary care: a real-life study and cost-effectiveness analysis. Prim Care Respir J. 2012;21(2):159-166.
37. Jithoo A, Enright PL, Burney P, et al; BOLD Collaborative Research Group. Case-finding options for COPD: results from the Burden of Obstructive Lung Disease study. Eur Respir J. 2013;41(3):548-555.
38. Perez-Padilla R, Vollmer WM, Vázquez-García JC, Enright PL, Menezes AM, Buist AS; BOLD and PLATINO Study Groups. Can a normal peak expiratory flow exclude severe chronic obstructive pulmonary disease? Int J Tuberc Lung Dis. 2009;13(3):387-393.
39. Kotz D,Wesseling G, Huibers MJ, van Schayck OC. Efficacy of confronting smokers with airflow limitation for smoking cessation. Eur Respir J. 2009;33(4):754-762.
40. McClure JB, Ludman EJ, Grothaus L, Pabiniak C, Richards J. Impact of a brief motivational smoking cessation intervention: the Get PHIT randomized controlled trial. Am J Prev Med. 2009;37(2):116-123.
41. Parkes G, Greenhalgh T, Griffin M, Dent R. Effect on smoking quit rate of telling patients their lung age: the Step2quit randomised controlled trial. BMJ. 2008;336(7644):598-600.
42. Sippel JM, Osborne ML, Bjornson W, et al. Smoking cessation in primary care clinics. J Gen Intern Med. 1999;14(11):670-6.
43. Risser NL, Belcher DW. Adding spirometry, carbon monoxide, and pulmonary symptom results to smoking cessation counseling: a randomized trial. J Gen Intern Med. 1990;5(1):16-22.
44. Decramer M, Dahl R, Kornmann O, Korn S, Lawrence D, McBryan D. Effects of long-acting bronchodilators in COPD patients according to COPD severity and ICS use. Respir Med. 2013;107(2):223-232.
45. Jenkins CR, Jones PW, Calverley PM, et al. Efficacy of salmeterol/fluticasone propionate by GOLD stage of chronic obstructive pulmonary disease: analysis from the randomised, placebo-controlled TORCH study. Respir Res. 2009;10:59.
46. Decramer M, Celli B, Kesten S, Lystig T, Mehra S, Tashkin DP; UPLIFT investigators. Effect of tiotropium on outcomes in patients with moderate chronic obstructive pulmonary disease (UPLIFT): a prespecified subgroup analysis of a randomised controlled trial. Lancet. 2009;374(9696):1171-1178.
47. Niewoehner DE, Rice K, Cote C, et al. Prevention of exacerbations of chronic obstructive pulmonary disease with tiotropium, a once-daily inhaled anticholinergic bronchodilator: a randomized trial. Ann Intern Med. 2005;143(5):317-326.
48. Tonnel AB, Perez T, Grosbois JM, Verkindre C, Bravo ML, Brun M; TIPHON study group. Effect of tiotropium on health-related quality of life as a primary efficacy endpoint in COPD. Int J Chron Obstruct Pulmon Dis. 2008;3(2):301-310.
49. Pauwels RA, Löfdahl CG, Laitinen LA, et al; European Respiratory Society Study on Chronic Obstructive Pulmonary Disease. Long-term treatment with inhaled budesonide in persons with mild chronic obstructive pulmonary disease who continue smoking. N Engl J Med. 1999;340(25):1948-1953.
50. Vestbo J, Sørensen T, Lange P, Brix A, Torre P, Viskum K. Long-term effect of inhaled budesonide in mild and moderate chronic obstructive pulmonary disease: a randomised controlled trial. Lancet. 1999;353(9167):1819-1823.
51. Lapperre TS, Snoeck-Stroband JB, Gosman MM, et al; Groningen Leiden Universities Corticosteroids in Obstructive Lung Disease Study Group. Effect of fluticasone with and without salmeterol on pulmonary outcomes in chronic obstructive pulmonary disease: a randomized trial. Ann Intern Med. 2009;151(8):517-527.
52. Calverley PM, Rennard S, Nelson HS, et al. One-year treatment with mometasone furoate in chronic obstructive pulmonary disease. Respir Res. 2008;9:73.
53. Lung Health Study Research Group. Effect of inhaled triamcinolone on the decline in pulmonary function in chronic obstructive pulmonary disease. N Engl J Med. 2000;343(26):1902-1909.
54. Löfdahl CG, Postma DS, Pride NB, Boe J, Thorén A. Possible protection by inhaled budesonide against ischaemic cardiac events in mild COPD. Eur Respir J. 2007;29(6):1115-1119.
55. Troosters T, Sciurba FC, Decramer M, et al. Tiotropium in patients with moderate COPD naive to maintenance therapy: a randomised placebo-controlled trial. NPJ Prim Care Respir Med. 2014;24:14003.
56. Hoogendoorn M, Feenstra TL, Hoogenveen RT, Al M, Mölken MR. Association between lung function and exacerbation frequency in patients with COPD. Int J Chron Obstruct Pulmon Dis. 2010;5:435-444.
57. Suissa S, Patenaude V, Lapi F, Ernst P. Inhaled corticosteroids in COPD and the risk of serious pneumonia. Thorax. 2013;68(11):1029-1036.
58. Calverley PM, Stockley RA, Seemungal TA, et al; Investigating New Standards for Prophylaxis in Reduction of Exacerbations (INSPIRE) Investigators. Reported pneumonia in patients with COPD: findings from the INSPIRE study. Chest. 2011;139(3):505-512.
59. Enright P. Patients are hurt by a false diagnosis of chronic obstructive pulmonary disease. Am J Respir Crit Care Med. 2014;189(2):229.
60. Kaplan A, Freeman D, Cleland J, Cerasoli F, Price D. Detecting mild COPD is not a waste of resources. Prim Care Respir J. 2011;20(3):238-239.
61. Jones R. Earlier detection of COPD. Prim Care Respir J. 2011;20(2):222.
62. Enright P, White P. Detecting mild COPD: don't waste resources. Prim Care Respir J. 2011;20(1):6-8.
63. Enright P. Does screening for COPD by primary care physicians have the potential to cause more harm than good? Chest. 2006;129(4):833-835.
64. Scanlon PD, Connett JE,Waller LA, et al; Lung Health Study Research Group. Smoking cessation and lung function in mild-to-moderate chronic obstructive pulmonary disease: the Lung Health Study. Am J Respir Crit Care Med. 2000;161(2 pt 1):381-390.
65. Hoogendoorn M, Feenstra TL, Hoogenveen RT, Rutten-van Mölken MP. Long-term effectiveness and cost-effectiveness of smoking cessation interventions in patients with COPD. Thorax. 2010;65(8):711-718.
66. Wagena EJ, van der Meer RM, Ostelo RJ, Jacobs JE, van Schayck CP. The efficacy of smoking cessation strategies in people with chronic obstructive pulmonary disease: results from a systematic review. Respir Med. 2004;98(9):805-815.
67. Strassmann R, Bausch B, Spaar A, Kleijnen J, Braendli O, Puhan MA. Smoking cessation interventions in COPD: a network meta-analysis of randomised trials. Eur Respir J. 2009;34(3):634-640.
68. Jiménez-Ruiz CA, Masa F, Miravitlles M, et al. Smoking characteristics: differences in attitudes and dependence between healthy smokers and smokers with COPD. Chest. 2001;119(5):1365-1370.
69. Jiménez Ruiz CA, Ramos Pinedo A, Cicero Guerrero A, Mayayo Ulibarri M, Cristobal Fernández M, Lopez Gonzalez G. Characteristics of COPD smokers and effectiveness and safety of smoking cessation medications. Nicotine Tob Res. 2012;14(9):1035-1039.
70. Clark MA, Hogan JW, Kviz FJ, Prohaska TR. Age and the role of symptomatology in readiness to quit smoking. Addict Behav. 1999;24(1):1-16.
71. Walters N, Coleman T. Comparison of the smoking behaviour and attitudes of smokers who attribute respiratory symptoms to smoking with those who do not. Br J Gen Pract. 2002;52(475):132-134.

Return to Table of Contents

Key questions

  1. Does the effect of screening among asymptomatic adults vary across strategy (ie, selective subgroups [age, presence of certain comorbidities, sex, race/ethnicity, smoking history, or others] vs general population)?
    1. Does screening asymptomatic adults 40 years and older for COPD with prebronchodilator screening spirometry improve health-related quality of life or reduce morbidity or mortality?
  2. Does identifying asymptomatic adults with fixed airflow obstruction through screening improve the delivery and uptake of targeted preventive services?
  3. Does screening for COPD increase smoking cessation rates among asymptomatic adults compared with usual care?
  4. Does screening for COPD increase relevant immunization rates among asymptomatic adults compared with usual care?
  5. What are the adverse effects of screening for COPD using prescreening questionnaires or screening pulmonary function tests?
    1. Can high-risk asymptomatic adults who are more likely to test positive on screening for COPD be reliably identified using prescreening questionnaires?
    2. What is the test performance of screening pulmonary function tests (eg, prebronchodilator screening spirometry, peak flow meter) in predicting diagnosis of COPD based on confirmation using postbronchodilator spirometry to identify fixed airflow obstruction in asymptomatic adults?
  6. What are the adverse effects of COPD screening, including the effect of targeted preventive services in this population (eg, false reassurance for screen-negative smokers)?
  7. Does treatment for asymptomatic adults identified with mild to moderate COPD through screening improve health-related quality of life or reduce morbidity or mortality?
  8. What are the adverse effects of COPD treatments in this population?

The process of screening asymptomatic adults for chronic obstructive pulmonary disease (COPD) can either involve a targeted screening approach (with questionnaires [key question 2]) or no risk stratification whereby asymptomatic unselected adults go directly to pulmonary function screening tests (key question 3). The dashed line indicates an established association between an intermediate outcome and a health outcome.
a Using prescreening questionnaires.

Text Description.

The figure is an analytic framework that depicts the eight Key Questions of the evidence review. In general, it illustrates the overarching questions: whether screening asymptomatic adults age 40 years and older for COPD with prescreening bronchodilator screening spirometry leads to improved health outcomes or potential harms. The analytic framework also illustrates Key Questions related to screening modalities used to identify adults who are more likely to test positive on screening and the test performance of prebronchodilator screening spirometry in predicting COPD diagnostic confirmation. In addition, the analytic framework outlines intermediate Key Questions investigating if identifying asymptomatic adults with fixed airway obstruction results in improved delivery of targeted preventive services, specifically smoking cessation interventions and/or influenza or pneumococcal immunizations, and the potential related harms. Also, if treating screen-identified patients with asymptomatic COPD improves health outcomes and what harms are associated with COPD treatment in this population.

Return to Table of Contents


Diagnostic criterion for chronic obstructive pulmonary disease is a postbronchodilator ratio of forced expiratory volume in 1 second (FEV1) to forced vital capacity (FVC) of less than 0.70. KQ indicates key question.
a Details about reasons for exclusion are as follows. Relevance: study aim not relevant. Setting: study was not conducted in a country relevant to US practice. Population: study was not conducted in asymptomatic adults 40 years and older. Quality: study did not meet criteria for fair or good quality (ie, it was poor quality). Study design: study did not use an included design. Intervention: study used an excluded intervention or screening approach. Outcomes: study did not have relevant outcomes or had incomplete outcomes. Non-English: study was published in a non-English language.

Text Description.

This figure is a flow chart that summarizes the search and selection of articles included in the evidence review. There were 19,225 citations identified through literature databases. An additional 114 citations were identified from outside sources, such as reference lists and suggestions from peer reviewers. After duplicates were removed, 13,141 unique citations were screened at the title/abstract stage. The full text of 465 citations were examined for inclusion for one or more of the eight Key Questions. The following number of studies were included for Key Question 1 (k=0), Key Question 2 (k=14), Key Question 3 (k=5), Key Question 4 (k=8), Key Question 5 (k=5), Key Question 6 (k=1), Key Question 7 (k=11), and Key Question 8 (k=8).

Return to Table of Contents

Risk Factors and Symptoms Included Source No. Screened Country Reference
Standard
Population Positive Screening Cutoff % (95% CI) Quality
Sensitivity Specificity PPV NPV AUC
8-Item CDQ (Score Range, 0–38)
Age, smoking history, BMI, weather-affected cough, phlegm without a cold, morning phlegm, wheeze, history of allergies Stanley et al,24 2014 1631 Australia Post-BD spirometry (FEV1/FVC <0.70) Current or former smokers >16.5 80 (72-86)a 47 (44-50)a 18 (15-22)a 94 (91-96)a 0.71 Fair
>19.5 63 (55-71)a 70 (67-73)a 24 (20-29)a 93 (91-94)a
Dirven et al,25 2013b 203 Netherlands Post-BD spirometry (FEV1/FVC <0.70) plus physician's clinical evaluation General population >19.5 NR NR 23 (12-38) NR NR Fair
Frith et al,17 2011 237 Australia Post-BD spirometry (FEV1/FVC <0.70) and reversibility ≤200 mL and ≤12% from baseline pre-BD FEV1 Current or former smokers >16.5 91 (80-97) 37 (29-45) 36 (28-44) 91 (81-97) 0.72 Good
>19.5 71 (58-83) 62 (54-70) 42 (32-53) 85 (77-91)
Sichletidis et al,14 2011c 1250 Greece Post-BD spirometry (FEV1/FVC <0.70) Smokers and nonsmokers from primary care >16.5 91 (85-95)a 49 (46-52)a 17 (14-20)a 98 (96-99)a NR Fair
>19.5 72 (63-80)a 77 (74-80)a 26 (22-32)a 96 (94-97)a
Smokers only >16.5 93 39 24 97 NR
Kotz et al,26 2008 826 Netherlands Post-BD spirometry (FEV1/FVC <0.70) Current smokers >16.5 89 (85-92) 24 (20-29) 45 (41-49) 76 (68-83) 0.65 Good
>19.5 66 (60-71) 54 (49-59) 50 (45-55) 69 (64-74)
5-Item LFQ (Score Range, 5–25)
Age; smoking history; presence of wheeze, dyspnea, and phlegm Mintz et al,27 2011 1288 United States Post-BD spirometry (FEV1/FVC <0.70) Ever-smokers ≤18 88 (75-94)a,d 25 (22-28)a,d 21 (18-24)a,d 90 (78-97)a,d NR Fair
5-Item COPD-PS (Score Range, 0–10)
Shortness of breath, presence of phlegm or mucus, functional limitations due to breathing problems, smoking history, age Tsukuya et al,28 2015   Japan   Smokers and nonsmokers ≥4 67 (60-74)a 73 (71-75)a 15 (12-17)a 97 (96-98)a 0.70 Fair
≥5 35 (27-42)a 79 (78-81)a 10 (8-13)a 95 (93-96)a 0.57

Abbreviations: AUC, area under the receiver operating characteristic curve; BD, bronchodilator; BMI, body mass index; CDQ, COPD Diagnostic Questionnaire; COPD, chronic obstructive pulmonary disease; COPD-PS, COPD Population Screener; FEV1, forced expiratory volume in 1 second; FEV6, forced expiratory volume in 6 seconds; LFQ, Lung Function Questionnaire; NPV, negative predictive value; NR, not reported; PPV, positive predictive value.
a Calculated.
b Only screen-positive patients underwent diagnostic spirometry; 39 of 50 screen-positive patients underwent diagnostic testing.
c Study used the cut points of 17 points for intermediate likelihood and >20 points for high likelihood.
d Estimates calculated using the Begg and Greenes29 method to adjust for lack of spirometric verification in all participants.

Return to Table of Contents

COPD Prevalence No.
Screen Positive False Positive Missed Cases
CDQ >16.5: sensitivity 87%, specificity 44%
10% 591 504 13
20% 622 448 26
CDQ >19.5: sensitivity 69%, specificity 70%
10% 339 270 31
20% 378 240 62
FEV1/FEV6 <0.70 (pre-BD): sensitivity 52%, specificity 92%
10% 124 72 48
20% 168 64 96
FEV1/FEV6 <0.70 (post-BD): sensitivity 80%, specificity 95%
10% 125 45 20
20% 200 40 40

Abbreviations: BD, bronchodilator; CDQ, COPD Diagnostic Questionnaire; COPD, chronic obstructive pulmonary disease; FEV1, forced expiratory volume in 1 second; FEV6, forced expiratory volume in 6 seconds.

Return to Table of Contents

Source No. Screened Country Reference Standard Population Positive Screening Cutoff % (95% CI) Quality
Sensitivity Specificity PPV NPV AUC
Prebronchodilator FEV1/FEV6
Frith et al,17 2011 237 Australia Post-BD spirometry (FEV1/FVC <0.70) and reversibility ≤200 mL and ≤12% from baseline pre-BD FEV1 Current or former smokers <0.70 51 (37-64) 93 (87-96) 73 (56-85) 83 (76-88) 0.85 Good
Thorn et al,36 2012 305a Sweden Post-BD spirometry (FEV1/FVC <0.70) Current or former smokers <0.70 53 (42-64)b 90 (85-93)b 63 (51-74)b 85 (80-89)b 0.84 Fair
Postbronchodilator FEV1/FEV6
Sichletidis et al,14 2011 1250 Greece Post-BD spirometry (FEV1/FVC <0.70) Smokers and nonsmokers <0.70 80 (72-87)b 95 (93-96)b 64 (56-72)b 98 (97-99)b NR Fair
Smokers only <0.70 80 94 75 96 NR

Abbreviations: AUC, area under the receiver operating characteristic curve; BD, bronchodilator; FEV1, forced expiratory volume in 1 second; FEV6, forced expiratory volume in 6 seconds; NPV, negative predictive value; NR, not reported; PPV, positive predictive value.
a No. analyzed; No. screened was not reported.
b Calculated.

Return to Table of Contents

Source No. Randomized Population Summary Follow-up, mo Treatment Comparison Smoking Abstinence, No. (%) Quality
Kotz et al,39 2009 296 Aged 35-70 y; ≥10 pack-year history; ≥1 respiratory symptom (cough, sputum, shortness of breath); mild or moderate COPDa 12 IG: Counseling plus discussion of spirometry results 13 (11.2)b, c Fair
CG: Counseling alone or referral to smoking cessation treatment 13 (11.2)b, c
McClure et al,40 2009 542 Smokers aged ≥18 y; smoked average of 15 cigarettes/d for the past year or 10 cigarettes/d for ≥10 y 12 IG: Counseling plus discussion of spirometry, "lung age," and CO resultsd 29 (10.9)c, e Fair
CG: Health risk report and general advice to quit smoking 35 (13.0)c, e
Parkes et al,41 2008 561 Aged ≥35 y; patient record indicates was a smoker within the last 12 mo 12 IG: Counseling and confrontation with "lung age" 38 (13.6)b, f Fair
CG: General advice to quit smoking and lung function scores via mail with no further explanation 18 (6.4)b, f
Sippel et al,42 1999 205 Smokers aged ≥18 y 9 IG: Counseling plus discussion of spirometry and CO results 9 (9.0)c, e Fair
CG: Counseling alone 14 (14.0)c, e
Risser and Belcher,43 1990 90 Smokers participating in a general preventive intervention Veterans Administration demonstration project 12 IG: Counseling plus discussion of spirometry and CO results 9 (20.0)c, e Fair
CG: Counseling alone 3 (6.7)c, e

Abbreviations: CG, control group; CO, carbon monoxide; COPD, chronic obstructive pulmonary disease; FEV1, forced expiratory volume in 1 second; FVC, forced vital capacity; IG, intervention group; RCT, randomized clinical trial.
a Postbronchodilator FEV1/FVC <70% and FEV1 >150% predicted.
b Biochemically validated smoking abstinence.
c Not statistically significant.
d “Lung age” given to those with FEV1 <80%.
e Self-reported smoking abstinence.
f Statistically significant difference; validated quit rate difference, 7.2% (95% CI, 2.2%–12.1%); P = 0.005.

Return to Table of Contents

  LABA ICS LABA-ICS LAMA Tiotropium
Population Moderate COPD Mild to moderate COPD Moderate COPD Moderate COPD
Overall No. of studies 244, 45 645, 50-54 145 544, 46-48, 55
Overall No. of participants 3174 3983 1097 4592
All-Cause Mortality
No. of studies 145 445, 50, 53, 54 145 246, 55
No. of participants 1057 3653 1097 3196
Data summary IG: 9.2%
CG: 11.4%
Statistical testing not provided
Similar rates reported in IG vs CG Reduction in IG vs CG (HR, 0.67 [95% CI, 0.45–0.98]); interaction testing revealed no heterogeneity of effect by COPD severity; main trial showed no difference at 3 y IG: 9.2%
CG: 10.8%
HR, 0.84 (95% CI, 0.66–1.07)
Exacerbations
No. of studies 145 445, 50, 52, 54 145 346, 47, 55
No. of participants 1057 2803 1097 3483
Data summary Annual rate of moderate to severe exacerbation:
IG: 0.71
CG: 0.82
Statistical testing not provided
3 RCTs report similar trends of lower exacerbations but no statistical testing; 1 RCT reported a significantly lower yearly rate of exacerbations in IG vs CG (RR, 0.63 [95% CI, 0.47–0.85]) Annual rate of moderate to severe exacerbations:
IG: 0.57
CG: 0.82
Annual reduction rate in IG, 31% (95% CI, 19%–40%)
2 of 3 subanalyses showed reduction in mean number of exacerbations; other study showed no difference in exacerbations without reporting statistics
Health-Related Quality of Life
No. of studies 244, 45 245, 51 145 444, 46, 48, 55
No. of participants 3174 1114 10,974 3283
Data summary Mixed results Neither IG nor CG had changes reaching the threshold for a minimum clinically important difference Neither group achieved clinically meaningful changes 1 RCT in treatment-naive moderate disease reported improvement in scores, but uncertain if clinically meaningful and 3 subanalyses reported mixed results on scores
Dyspnea Scores
No. of studies 144 251, 53 0 144
No. of participants 2117 1158 NA 911
Data summary Pooled subanalysis of 3 RCTs showed there was a statistically significant short-term effect after 6 mo Fewer patients experienced dyspnea in IG vs CG, but unclear if clinically meaningful No trials Patients achieving a meaningful clinical difference in scores:
IG: 64.6%
CG: 49.3%
OR, 1.59 (95% CI, 1.07–2.37)

Abbreviations: CG, control group; COPD, chronic obstructive pulmonary disease; HR, hazard ratio; ICS, inhaled corticosteroids; IG, intervention group; LABA, long-acting β-agonist; LAMA, long-acting muscarinic antagonist; OR, odds ratio; NA, not applicable; RCT, randomized clinical trial; RR, relative risk.

Return to Table of Contents

  LABA ICS LABA-ICS LAMA Tiotropium
Population Moderate COPD Mild to moderate COPD Moderate COPD Moderate COPD
Overall No. of studies 244, 45 545, 50, 51, 53, 54 245, 51 344, 46, 55
Overall No. of participants 3191 3732 1149 4076
Withdrawals
No. of studies 145 445, 50, 51, 54 245, 51 146
No. of participants 1074 2617 1149 2739
Data summary IG: 27%
CG: 35%
Statistical testing not provided
Similar rates reported between groups 1 subanalysis reported fewer withdrawals in IG vs CG (27% vs 35%; statistical testing not provided); other RCT reported similar withdrawal between groups IG: 30.6%
CG: 34.7%
Statistical testing not provided
Composite Adverse Events
No. of studies 244, 45 345, 50, 54 145 244, 55
No. of participants 3101 2552 1108 1337
Data summary 1 pooled subgroup analysis of 3 RCTs reported mostly similar rates across groups; 1 subanalysis reported mixed results with some adverse events slightly more common in the IG and some slightly more common in the CG, but unclear if there was a meaningful difference 2 of 3 RCTs showed similar rates between groups; 1 trial reported more events in CG vs IG IG: 86.2%
CG: 86.6%
Statistical testing not provided
1 RCT of treatment-naive patients reported similar rates between groups (4.1% vs 4.4%; statistical testing not provided); 1 pooled analysis reported higher rates in IG vs CG (67% vs 55.9%; statistical testing not provided)
Fractures
No. of studies 0 153 0 0
No. of participants NA 653 NA NA
Data summary No trials New lumbar fractures:
IG: 5%
CG: 3%
Statistical testing not provided
No trials No trials
Pneumonia
No. of studies 145 245, 50 145 0
No. of participants 1074 1377 1108 NA
Data summary IG: 9.4%
CG: 10.6%
Statistical testing not provided
Mixed results: 1 RCT reported higher rates in the IG (12.8% vs 10.6%); 1 reported higher rates in the CG (11.0% vs 16.6%) IG: 15.3%
CG: 10.6%
Statistical testing not provided
No trials

Abbreviations: CG, control group; COPD, chronic obstructive pulmonary disease; ICS, inhaled corticosteroids; IG, intervention group; LABA, long-acting β-agonist; LAMA, long-acting muscarinic antagonist; NA, not applicable; RCT, randomized clinical trial.

Return to Table of Contents

Key Question Population No. of Studies No. of Participants Study Design Summary of Findings Consistency Body of Evidence Limitation Applicability Overall
Study
Quality
Key question 1: Health outcomes Asymptomatic adults       No trials examined the efficacy of COPD screening on health outcomes
Key question 2: Questionnaires Adults in the general population and primary care with and without smoking history 5 3048 CDQ diagnostic accuracy CDQ score >16.5:
Sensitivity low 90% range
Specificity high 30% to mid 40% range
Reasonably consistent Heterogeneous populations with wide variation in COPD prevalence in ever-smokers (13%–28%) All external validation studies performed outside United States Fair
Ever-smoking adults in primary care 1 849 LFQ diagnostic accuracy LFQ score ≤18:
Sensitivity 88%
Specificity 25%
Unknown: 1 external validation study Derived from NHANES III survey of self-reported physician-diagnosed chronic bronchitis; COPD defined using pre-BD FEV1/FVC. Single external validation study. External validation study conducted in 36 US primary care sites Fair
Adults in the general population and primary care with and without smoking history 1 2357 COPD-PS diagnostic accuracy COPD-PS score ≥4:
Sensitivity 67%
Specificity 73%
COPD-PS score ≥5:
Sensitivity 35%
Specificity 79%
Unknown: 1 external validation study External validation study in single Japanese rural community without exclusion of preexisting COPD Development sample recruited participants from US pulmonary and primary care clinics, but external validation study setting may not be generalizable to US primary care screening population Fair
Key question 3: Simple pulmonary function test Adults in the general population 2 23,098 PEF diagnostic accuracy Two population-based studies with different index test thresholds; gold-standard tests and COPD definitions do not provide sufficient information to estimate accuracy Unknown due to studies' heterogeneity BOLD and PLATINO population-based samples do not exclude nor report baseline COPD diagnoses Serious concerns regarding applicability to US population given that many countries in BOLD and PLATINO are developing countries with different environmental and occupational exposures Fair
Pre-BD FEV1/FEV6: ever-smokers in primary care
Post-BD FEV1/FEV6: primary care with and without smoking history
Pre-BD FEV1/FEV6: 2
Post-BD FEV1/FEV6: 1
Pre-BD FEV1/FEV6: 509
Post-BD FEV1/FEV6: 1078
FEV1/FEV6 diagnostic accuracy Pre-BD FEV1/FEV6 <0.70:
Sensitivity low 50% range
Specificity low 90% range
Post-BD FEV1/FEV6 <0.70:
Sensitivity 80%
Specificity 95%
Consistent Few studies Conducted in Australia, Sweden for pre-BD studies; Greece for post-BD. Most likely reasonably applicable to US primary care population, although environmental/occupational exposures might vary. Fair
Key question 4: Screening harms Adults in the general population and primary care with and without smoking history 4 3009 CDQ diagnostic accuracy CDQ >16.5 threshold:
Missed cases, 9%–20%
FP rate, 51%–76%
Inconsistent Heterogeneous populations with smokers vs general population All external validation studies performed outside of United States Fair
Ever-smoking adults in primary care 1 849 LFQ diagnostic accuracy LFQ: Missed diagnosis and FP rate could not be reliably estimated Unknown: 1 study Single external validation study Validated in 36 US primary care sites Poor
General population including smokers and nonsmokers 1 2357 COPD-PS diagnostic accuracy COPD-PS ≥4:
Missed cases, 33%
FP rate, 27%
COPD-PS ≥5:
Missed cases, 65%
FP rate, 21%
Unknown: 1 external validation study Single study set in Japanese rural town May not be generalizable to US primary care screening population Fair
General population including smokers and nonsmokers 1 9390 PEF diagnostic accuracy Missed cases, 16%–69% depending on the threshold used; FP rate, 0.5%–16% depending on the threshold used Unknown: 1 study reporting FN and FP rates BOLD population-based samples did not exclude or report baseline known COPD so enriched sample Serious concerns regarding applicability to US population given that many countries in BOLD were low-development index countries with different environmental and occupational exposures Insufficient
Pre-BD FEV1/FEV6: Ever-smokers in primary care
Post-BD FEV1/FEV6: Primary care with and without smoking history
Pre-BD FEV1/FEV6: 2
Post-BD FEV1/FEV6: 1
Pre-BD FEV1/FEV6: 509
Post-BD FEV1/FEV6: 1078
FEV1/FEV6 diagnostic accuracy Pre-BD FEV1/FEV6 <0.70:
Missed cases, high 40% range
FP rate, 8%–10%
Post-BD FEV1/FEV6 <0.70:
Missed cases, 20%
FP rate, 5%
The FP and FN rates reported in the 2 pre-BD FEV1/FEV6 were consistent Only 2 studies for pre-BD FEV1/FEV6 All 3 studies were outside United States Fair
Key question 5a: Smoking cessation Adult smokers in the general population and primary care 5 1620 RCT Of 3 RCTs reporting biochemically confirmed abstinence, only 1 fair-quality RCT communicating lung age reported a statistically significantly higher abstinence rate in intervention group; 1 underpowered VA trial showed a trend toward higher abstinence rates in the intervention group, and 1 trial of screen-detected patients with mild to moderate COPD who were motivated to quit showed almost identical rates of biochemically confirmed abstinence rates at 12 mo in intervention and active treatment control groups Inconsistent Studies tested incremental value of adding spirometry to counseling alone rather than the value of COPD screening Only 1 RCT recruited screen-detected patients who were motivated to quit. All other trials included patients with prior COPD diagnoses. Fair
Key question 5b: Immunization rates Asymptomatic adults       No trials examined effectiveness of screening to increase vaccination rates
Key question 6: Harms of screening on preventive services Adult smokers in the general population and primary care 1 205 Observational qualitative study No conclusions possible because of scant data Unknown: 1 study Scant data Unknown Insufficient
Key question 7: Treatment efficacy Screen-detected COPD       No trials examined treatment effectiveness on health outcomes in screen-detected patients
Mild to moderate COPD LABA: 2
LABA-ICS: 1
Tiotropium: 5
ICS: 6
LABA: 3174
LABA-ICS: 1097
Tiotropium: 4592
ICS: 3983
LABA: 1 pooled subanalysis of RCTs, 1 RCT LABA-ICS: RCT
Tiotropium: RCT
ICS: RCT
Subanalyses from 1–4 RCTs for each drug class for individual outcomes support reduction in exacerbation rates, no difference in ACM, mixed findings for QOL in patients with moderate COPD; however, baseline annual exacerbation rates in control group <1/y. Evidence examining dyspnea scores and exercise capacity scant. Unknown: single subanalysis identified for most drug classes and outcomes Most subanalyses limited by small sample sizes, short trial durations, post hoc or unspecified analysis timing, and lack of statistical testing for interaction Nearly all subanalyses in populations of patients with symptomatic, moderate COPD, thereby limiting applicability to asymptomatic screen-detected populations Poor to fair
Key question 8: Treatment harms Asymptomatic screen-detected patients       No trials examining treatment harms in screen-detected patients
Mild to moderate COPD LABA: 2
LABA-ICS: 1
Tiotropium: 3
ICS: 5
LABA: 3191
LABA-ICS: 1149
Tiotropium: 4076
ICS: 3732
LABA: 1 pooled subanalysis of RCTs, 1 RCT
LABA-ICS: RCT
Tiotropium: RCT
ICS: RCT
Subanalyses from 1–4 RCTs for each drug class for withdrawals and adverse events too limited to make conclusions Unknown: single subanalysis identified for most drug classes and outcomes Most subanalyses limited by few studies, short trial durations, post hoc or unspecified analysis timing, lack of statistical testing for interaction, and variable adverse event reporting Nearly all subanalyses in populations of patients with symptomatic, moderate COPD, thereby limiting applicability to asymptomatic screen-detected populations Poor

Abbreviations: ACM, all-cause mortality; BD, bronchodilator; BOLD, Burden of Obstructive Lung Disease study; CDQ, COPD Diagnostic Questionnaire; COPD, chronic obstructive pulmonary disease; COPD-PS, COPD Population Screener; FEV1, forced expiratory volume in 1 second; FEV6, forced expiratory volume in 6 seconds; FN, false negative; FP, false positive; FVC, forced vital capacity; ICS, inhaled corticosteroids; LABA, long-acting β-agonist; LFQ, Lung Function Questionnaire; NHANES III, Third National Health and Nutrition Examination Survey; PEF, peak expiratory flow; PLATINO, Proyecto Latinoamericano de Investigación en Obstrucción Pulmonar; QOL, quality of life; RCT, randomized clinical trial; VA, US Department of Veterans Affairs.

Return to Table of Contents
